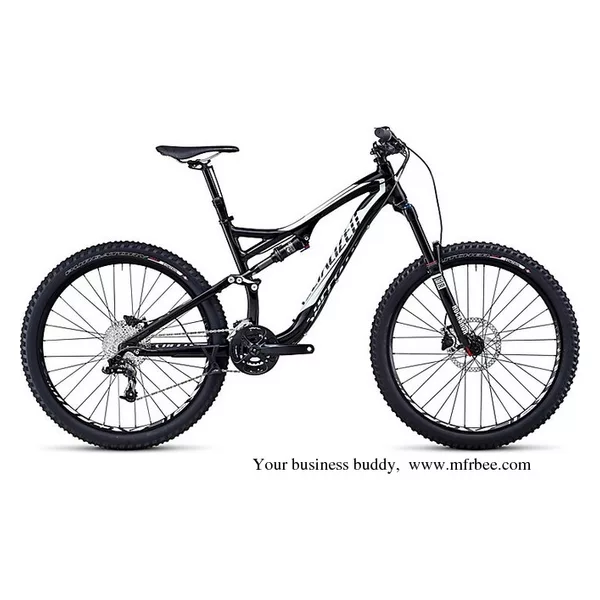

2014 Specialized Stumpjumper FSR Comp EVO Mountain Bike

SPECIFICATION :
FRAME
M5 hydroformed tubing, EVO geometry, tapered headtube, PF30 BB, ISCG ’05, Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel
SWAT
Bottle cage w/ SWAT Technology compatible (not included)
REAR SHOCK
Custom FOX Float CTD Evolution w/ AUTOSAG, Climb, Trail, Descend settings and reb adj., 195x51mm
FORK
Custom RockShox Revelation RC3, 3P damper, tapered alloy steerer, 3-position compression and reb adj., 15mm thru-axle, 150mm travel
HEADSET
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
STEM
Specialized Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized All-Mountain, low-rise, 7050 alloy, 750mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, L: XL thickness
FRONT BRAKE
Formula C1, alloy caliper, metallic pad, S/M: 180mm, L: 200mm rotor
REAR BRAKE
Formula C1, alloy caliper, metallic pad, S/M: 160mm, L: 180mm rotor
BRAKE LEVERS
Formula C1, hydraulic disc, tooled reach adj.
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
SRAM X9 Type 2, 10-speed, mid cage
SHIFT LEVERS
SRAM X7, 10-speed, aluminum trigger, zero loss
CASSETTE
SRAM PG-1030, 10-speed, 11-36
CHAIN
SRAM PC 1031, 10-speed, PowerLink
CRANKSET
Custom SRAM S-1250, 7050 alloy arms, 10-speed AM double, PF30 spindle, S: 170mm, Others: 175mm
CHAINRINGS
36/24, w/ alloy guard
BOTTOM BRACKET
SRAM PF30, OS press-in bearings, sealed cartridge
PEDALS
-
RIMS
Roval 26, alloy disc, 21mm internal width, 32h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB
Specialized Hi Lo disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142mm spacing, 32h
SPOKES
DT Industry Stainless, 3X front/rear 2.0mm
FRONT TIRE
Specialized Butcher Control, 2Bliss Ready, 26x2.3", foldable aramid bead, 60TPI
REAR TIRE
Specialized Purgatory Control, 2Bliss Ready, 26x2.3", foldable aramid bead, dual-compound, 60 TPI
INNER TUBES
-
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Command Post BlackLite, 3-position, adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S: 100mm, Others: 125mm travel
SEAT BINDER
Command Post, 7050 hard anodized alloy, single bolt, 34.9mm
