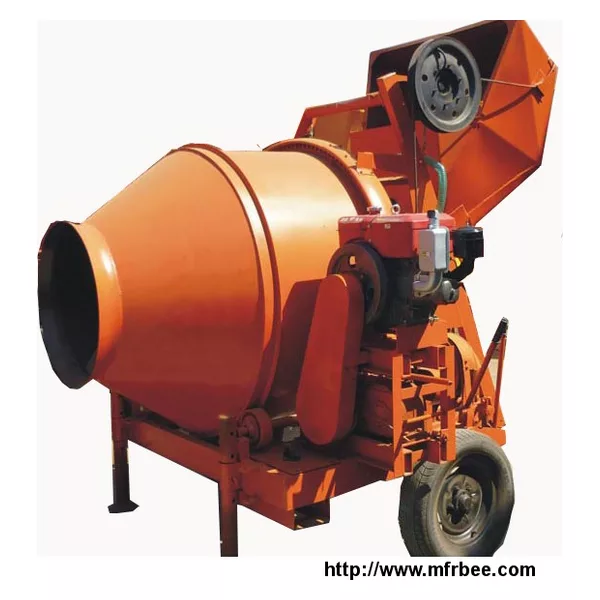

Hot Sale Diesel concrete mixer
Product Quick Detail
- FOB Price
- USD $5,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- export standard
- Delivery
- 15 Days
Specifications
Features of Diesel Concrete Mixer
1. Power source: diesel engine, no demands for electricity, Diesel engine, especially suitable for those areas lacking of electricity.
2. Easy to move between sites: the concrete mixer with diesel engines can be dragged to move by two wheels.
3. Compact structure, higher reliability, mixing evenly.
4. Adding a water pump for water circulation between water tank and water radiator, keep the water temperature stable.
5. Removing the air sucking point from the back to the front, reduce to suck the dust. It will be good to prolong the service life of the concrete mixer.
Main technical parameter:
| Model | JZR350 | JZR500 |
| Discharging Capacity(L) | 350 | 500 |
| Charging Capacity(L) | 560 | 800 |
| Productivity(m3/h) | 10-14 | 20-22 |
| Maximum Size of Aggregate(mm) | 60 | 80 |
| Hopper Lifting | Hydraulic system | Hydraulic system |
| Diesel Engine Power(kw) | 13.2 | 16.2 |
| Power of Water Pump(kw) | 0.75 | 2.2-3 |
| Accuracy of Water Supple | Error≤2% | Error≤2% |
| Dimensions in Container(mm) | 2300x1900x2500 | 2300x3300x2500 |
| Overall Weight(kg) | 1400 | 2200 |
