Specifications:
1.It can be added with wire slots to meet wiring demands.
2.size:500x500x28mm /600x600x35mm
3.ISO9001
Description:

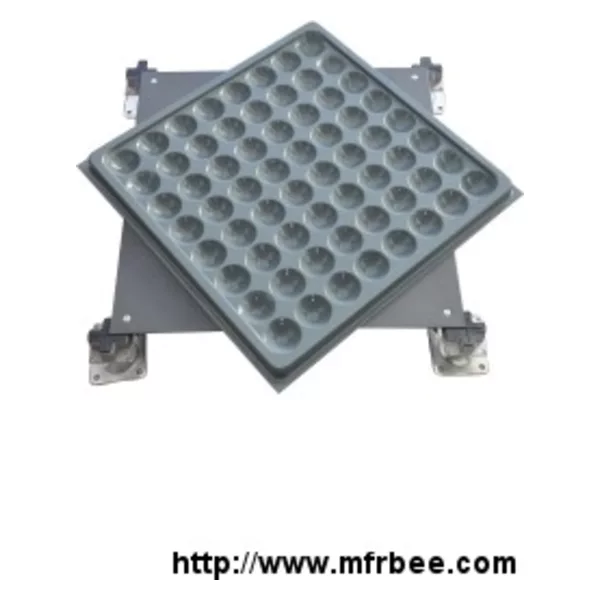

OA Raised Floor with dimension 500x500x28mm are specially designed for easy cables layout in telligent buildings.The outside of the raised floor is made of high-quality cold rolled steel sheet.
Advanced spot welding techinical structure is applied to the top and bottom of the raised floor,and in the middle is filled with cement.The supporting system is a structure with special designed aluminum head pedestalsand the superior steel sheet bottom,the four corner-lock holes and aluminum head pedestals are directly locked stably,which makes position highly accurate,raised floor flat,structure simple and installation easy.After completing installation,all kinds of cables can be distruted and maintained as long as lightly lifting panels,so it is safe and convenient for users in process of using.
Product name:ceramic floor Product material:ceramic material Panel specifications:600*600*40/600*600*45 Unit weight:19.3KG/piece Floor thickness:80MM-300MM other heights can be customized Fire rating:A Product application:Widely used in various computer rooms,communication ...
Product name:All steel floor Product material:All steel Panel specifications:600*600*32 Unit weight:19.3KG/piece Stand height:80MM-300MM other heights can be customized Fire rating:A Product application:Widely used in program-controlled computer rooms,computer rooms,control ...
Product name:Wood-based antistatic floor Material:High-density substrate Panel specifications:600*600*40 Unit weight:19.3KG/piece Floor thickness:50MM-200MM can be customized Fire rating:B1 Product application:It is suitable for various 5A-level intelligent buildings,5A-level ...
Product name:glass floor Product material:High-strength tempered glass Panel specifications:600*600 Concentrated load:200KG Floor thickness:12MM Uniform load:2300KG Blocks per pack:2 Impact load:≥180N Warranty period:3 years Ultimate load:4300N/per 10,000 times ...
Product name:calcium sulfate antistatic floor Product material:calcium sulfate Panel specifications:600*600 Unit weight:19.3KG/piece Floor thickness:30MM-40MM can be customized Uniform load:≥30000N/m2 Thermal conductivity:about 0.44W/mk Concentrated load:≥4560N Fire ...
Product name:Ventilated floor Product material:high quality steel Panel specifications:600*600 Unit weight:19.3KG/piece Floor thickness:80MM-300MM can be customized Fire rating:A Product application:various computer rooms,network communication room,monitoring and command ...
Product Name:OA Intelligent Network Floor Material:High-quality steel; Panel Specifications:500*500*32 Weight:19.3KG/piece; Floor thickness:50MM-200MM can be customized Product surface Layer:no veneer; Product filling:filling foam cement Fire rating:A Product application:It is ...
The aluminum alloy blind panel is made of high-quality aluminum ingot, which is molded by a high-pressure casting process at one time. It adopts high-load mechanical structure design and has strong bearing capacity. The double rib design on the back greatly increases the ...
Calcium sulphate raised floor is a sandwich construction with galvanized steel sheet(aluminum foil) to the bottom and laminate/vinyl to the top, enclosing a high strength calcium sulphate core. The 4 edges are wrapped with PVC trims. Model: FS1000-FS2500 Size: 600*600mm ...
Anti static flooring with HPL finish is made of standard steel cementitious raised floor with anti-static High Pressure Laminate (HPL) on top. The borders are trimmed with conductive rubber edges. The whole system is composed of panel, pedestal and stringer. Model: FS662-FS2500 ...
