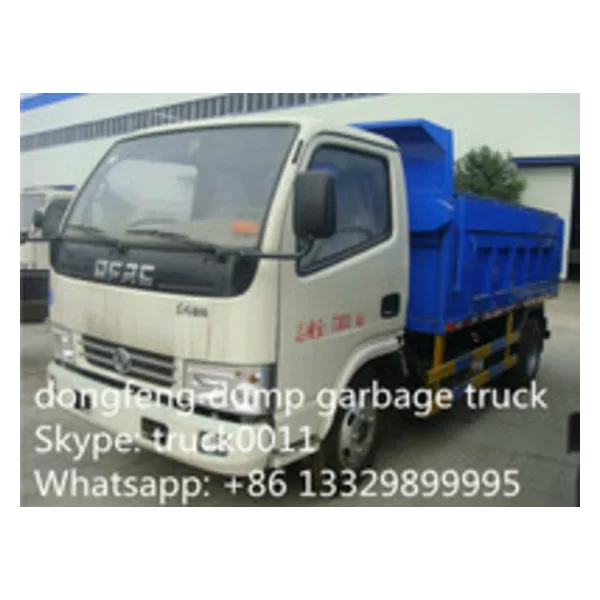

4-5T DongFeng small dump truck
1. Brief Introduction
A dump truck (or, UK, dumper truck) is a truck used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with a hydraulically operated open-box bed hinged at the rear, the front of which can be lifted to allow the contents to be deposited on the ground behind the truck at the site of delivery. In the UK and Australia the term applies to off-road construction plant only, and the road vehicle is known as a tipper, tipper lorry (UK) or tip truck (AU).
2. technical specification
vehicle type | CLW5060ZLJ3 | ||
chassis model | EQ1060TJ20D3 | ||
overall dimension(mm) | 5500×2000×2230 | gross weight(kg) | 6010 |
cargo body dimension(mm) | 3600×1750×600 | rated loading weight(kg) | 2380,2315 |
A/D angle(°) | 19/12 | curb weight(kg) | 3500 |
front/rear overhang(mm) | 1032/1168 | max.speed(km/h) | 90 |
engine type | manufacturer | displacement(ml) | power(kw) |
YC4F90-30 | Guangxi Yuchai Machine Co.,Ltd | 2659 | 66 |
CY4102-C3F | Dongfeng Chaoyang Diesel Engine | 3856 | 70 |
YN27CR | Chengdu Yunnei Power Co.,Ltd. | 2672 | 66 |
YN30CR | Chengdu Yunnei Power Co.,Ltd. | 2977 | 76 |
fuel type | diesel | emission standard | Euro Ⅲ |
nos of axle | 2 | nos of tyre | 6 |
wheel base(mm) | 3300 | tyre specification | 7.00-16,6.50-16,7.00R16,6.50R16 |
front tread(mm) | 1506/1466 | rear tread(mm) | 1466 |
axle load | 2280/3730 | allowable persons in cab | 2,3 |
numbers of leaf spring | 8/9+5,6/8+4 | dump mode | rear dump |
Equipment | Equipped with hermetic dustbin, hydraulic system and operating system | ||
Equipped with two advanced doubleacting hydrocylinders | |||
cycling time less than 60s | |||
special performance | Garbage truck is mainly carrying household garbage, can also transport ash, sand, stone,sand and other bulk construction material,moreover,can transport ore and coal,especially suitable for short-distance transportation. | ||
can use: carbon steel, stainless steel, internal adopting epoxy resin anticorrosive treatment. | |||
garbage collection is convenient and efficient, good environmental protection, high vehicle utilization efficiency, low fault rate, convenient maintenance.
More information, please feel free to contact with Ms. Anita Deng. Whatsapp: +86 13329899995 Skype: truck0011 Wechat: 504873236 |
