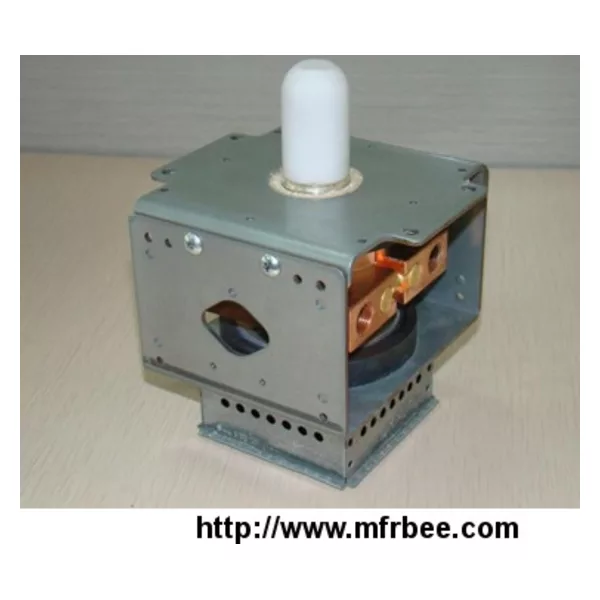

CK-2131 Model Continuous Wave Magnetron

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Frequency range (f) 2445±15MHz
Filament voltage when preheating 4.0V
Filament current when preheating 22A
Filament current when working 1.8V
Anodic voltage 5.1±0.2kV
Anodic current ≤850mA
Output power ≥2800W
Load VSWR ≤2.0:1
Cooling mode water cooling
Energy transport mode BJ—26 waveguide output
Efficiency ≥63% http://www.microwave-world.com

  • Country: China (Mainland)
  • Business Type:
  • Market:
  • Founded Year:
  • Address:5# Guangming Road,Pukou Economic Development Zone,Nanjing,Jiangsu,CHINA
  • Contact:mwave mwave
*Your name:
*Your Email:
*To:Nanjing SanLe Microwave Technology Development Co., Ltd
*Subject:
*Message:
Enter between 20 to 3,000 characters. English only.     Characters : 0 / 3000
*Enter the secure code shown below Mfrbee security Image      Reload Image

submiting now We do inquire for you , please wait ...

CK-2111 Model Continuous Wave Magnetron
CK-2111 Model Continuous Wave Magnetron

Frequency range (f) 2450±20MHz Filament voltage when preheating 6.4±0.3V Filament current when preheating 66A Filament current when working 3A Anodic voltage ≤13kV Anodic current ≤3.3A Output power ≥30kW Load VSWR ≤1.15:1 Cooling mode water cooling Energy transport ...

Nanjing SanLe Microwave Technology Development Co., Ltd

CK-2091 Model Continuous Wave Magnetron
CK-2091 Model Continuous Wave Magnetron

Frequency range (f) 2450±30MHz Filament voltage when preheating 8.5±0.7V Filament current when preheating 47A Filament current when working 29A Anodic voltage ≤12.6kV Anodic current ≤1.8A Output power ≥15kW Load VSWR ≤2.0:1 Cooling mode water cooling Energy transport ...

Nanjing SanLe Microwave Technology Development Co., Ltd
