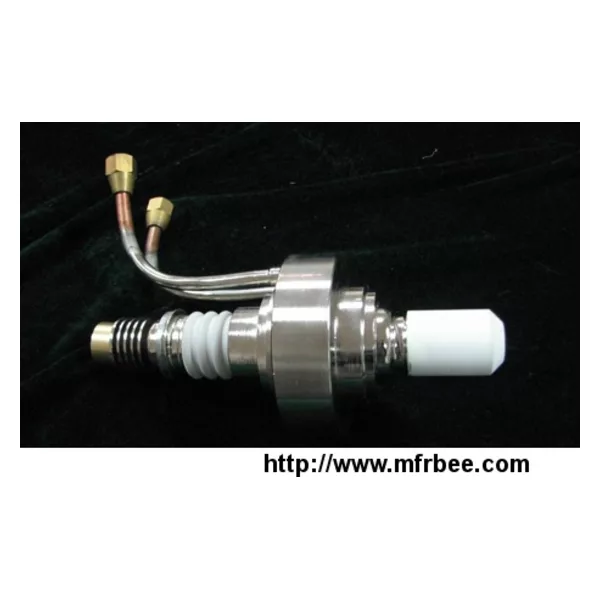

CK-2091 Model Continuous Wave Magnetron

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Frequency range (f) 2450±30MHz
Filament voltage when preheating 8.5±0.7V
Filament current when preheating 47A
Filament current when working 29A
Anodic voltage ≤12.6kV
Anodic current ≤1.8A
Output power ≥15kW
Load VSWR ≤2.0:1
Cooling mode water cooling
Energy transport mode BJ—22 waveguide output
Efficiency ≥66% http://www.microwave-world.com
