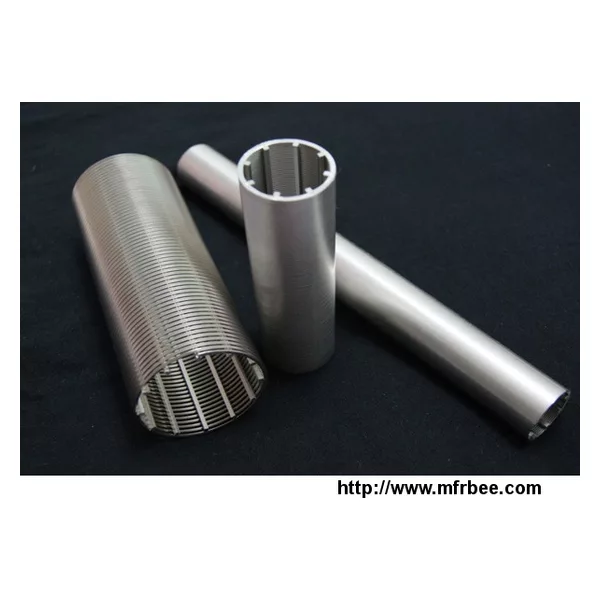

Sand Control Screen

Sand control screen is an economical, yet robust capable sand control filter screen. The screen features two layers of 316L stainless steel wire cloth, one which is a strong support/drainage layer and the other is the filtration control layer.

Process Date:

Three standard pore size selections

- 150 microns

- 225 microns

- 300 microns

Diameters available to fit base pipe sizes of 4.5", 5.5", and 6.625" .

Continuous lengths of up to 18.5'.

316L SS wire cloth filter media.

304 SS perforated outer shroud.

Thermally processed to create a stabilized pore structure.

Welded longitudinal seam and end rings.

Benefits:

Superior plugging resistance

Enhanced backwash ability

Uniform lateral flow across the base pipe

4-5x more available flow area than standard wire wrap screens

High bend, collapse, and burst capacity

Complete screen jacket, ready to assemble to base pipe
