92mm glass lens for street light

FOB Price
USD $4.52 / Piece
Place Of Origin
China
Minimum Order
50
Packaging
one pcs in a small box
Delivery
5

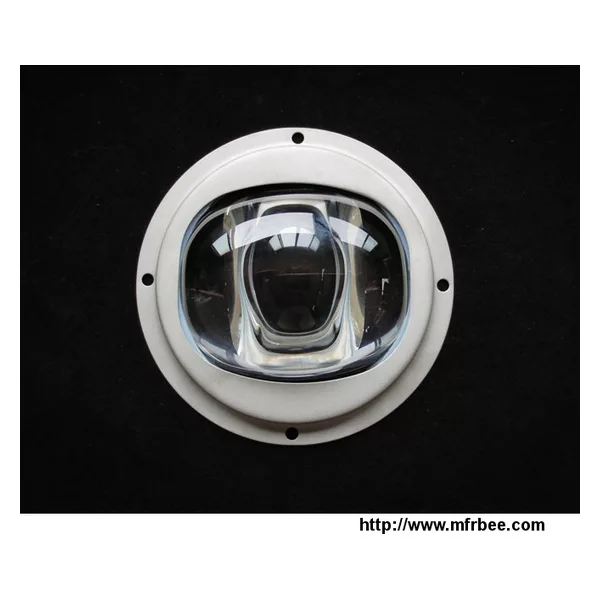

92mm optical glass lens for street lighting with 80 * 140 degree ( RH-SL-09)

RH-SL-09 glass lens Main parameter

Model No RH-SL-09
Description 92mm street light glass lens , lens for glass , high borosilicate 3.3
Material High borosilicate material 3.3
Refractive index 1.474
Light transmittance 95%
Working temperature -50-550 degree
photometric curve bat wing light shape
Diameter 92mm Street light glass lens
View degree 80 X 140 degree
Lens price 3.77-4.52 USD/Complete set ( lens + gasket + holder)
lens description round led street light glass lens ,92mm diameter for 30W-50W Led
Applicable COB Led 30W-50W COB Led ( < 40 x 40 mm)
IES File Available
IP Rating IP65
Application Widely used for 30W-50W Led street lighting

RH-SL-09 Application

widely used for integrated 30W-50W COB Led street lighting, road,Sideway, square, school ,courtyard,highway and other outdoor lighting places

Reeth glass lens advantage

1.Made of high borosilicate glass
2.High efficiency in light utilization,long life time
3.Lower maintenance charges
4.Clear and transparent, never get yellow
5.High heat resistant and high light transmittance
6. we can provide silicon gasket and metal holder

Reeth company feature

1.we can provide professional optics system service
2.We are familiar with lighting terminology
3.We have the ability to analyze the photometric layout
4.We can custom-made based on client's samples and drawing
5.Professional research team and optical technology

payment term

T/T,Western union , money gram and paypal are all acceptable
