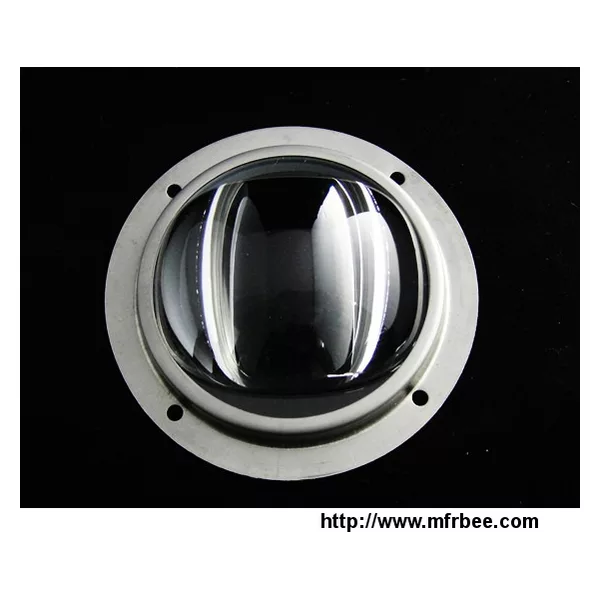

78mm street light glass lens
Product Quick Detail
- FOB Price
- USD $3.47 / Piece
- Place Of Origin
- China
- Minimum Order
- 50
- Packaging
- one pcs in a small box
- Delivery
- 5
Specifications
Led Street Light Lens for 30W-50W Led (RH-SL-11)
RH-SL-11 Main parameter
| Model No | RH-SL-11 |
| Description | Led glass lens with 78mm diameter , street lighting application |
| Material | high borosilicate glass |
| Refractive index | 1.474 |
| Working temperature | -50-550 degree |
| Light transmittance | 95% |
| photometic curve | bat wing light shape |
| Diameter | 78mm |
| View degree | 60 x 120 degree |
| Lens price | 2.90 ~3.47 USD/Complete set ( Lens + o -ring + metal holder) |
| Applicable COB Led | 10W,15W,20W and 30W COB Led ( < 35 x 35 mm) |
| Fixture | silicon gasket and metal holder are available |
| Application | widely used for 10W,15W,20W ,30W high power led street lighting |
RH-SL-11 Application
widely used for integrated 10W-30W COB Led street lighting, road, sideway, square, school, courtyard,highway and other outdoor led lighting places
Reeth glass lens advantage
1.Made of high borosilicate glass
2.High efficiency in light utilization,long life time
3.Lower maintenance charges
4.Clear and transparent, never get yellow
5.High heat resistant and high light transmittance
Reeth company feature
1.we can provide professional optics system service
2.We are familiar with lighting terminology
3.We have the ability to analyze the photometric layout
4.We can custom-made based on client's samples and drawing
5.Professional research team and optical technology
