round street light glass lens
Product Quick Detail
- Minimum Order
- 50
- Place Of Origin
- China
- Packaging
- one pcs in a small box
- Delivery
- 5
Specifications

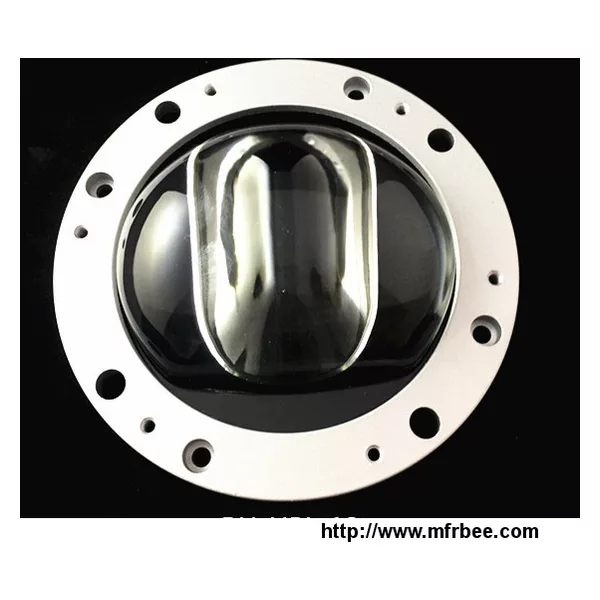

Round street light glass lens (RH-SL-10)
RH-SL-10 Main parameter
| Model No | RH-SL-10 |
| Lens material | high borosilicate |
| Refactive index | 1.474 |
| Light transmittance | 95%, if AR coating, can be up to 97% |
| working temperature | -50-550 degree |
| photometric cuve | symmetrical light pattern |
| Lens diamter | 107mm street light glass lens |
| View degree | 70 x 135 degree |
| Suitable COB Led | 30W/40W/50W/60W/70W/80W/100W /120W High power COB Led |
| IES File | Available |
| IP Rating | IP65 |
| Application | can be widely used for 30W-150W COB Led street lighting |
RH-SL-10 Application
widely used for integrated 30W-150W COB Led street lighting, road,Sideway, square, school ,courtyard,highway and other outdoor lighting places
Reeth glass lens advantage
1.Made of high borosilicate glass
2.High efficiency in light utilization,long life time
3.Lower maintenance charges
4.Clear and transparent, never get yellow
5.High heat resistant and high light transmittance
6. we can provide silicon gasket and metal holder
Reeth company feature
1.we can provide professional optics system service
2.We are familiar with lighting terminology
3.We have the ability to analyze the photometric layout
4.We can custom-made based on client's samples and drawing
5.Professional research team and optical technology
payment term
T/T,Western union , money gram and paypal are all acceptable
