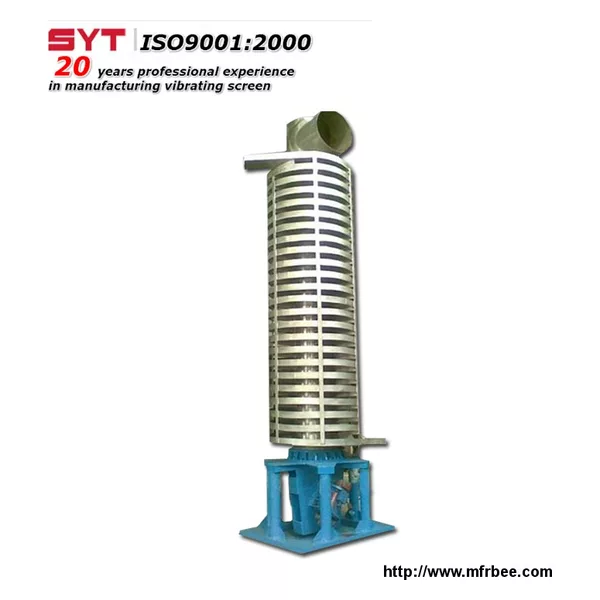

vertical vibration elevator

USD
1000
Place Of Origin
China
Voltage
per customer's request
Warranty
12 months
Application
Food Processing,Abrasive material
Delivery Port
Shanghai,Tianjing
Minimum Order
1
Material
Stainless steel
Power
variable
Type
Conveyor
Wight
1020kg
Packaging
1 set wood carton
Delivery
15 Days

Specifications

1.Simple structure
2.Easy maintenance

3.Its trough has two structures, separated and sealed

4.Motor vibration


Detailed Product Description

Main properties and uses:

1. SY series vertical vibration motor is widely used to lift the block,powder and solid fibrous materials of mine, metallurgy, machinery, chemicals, rubber, medicine, electricity and food industry.

2. When SY Vibrating conveyor raises materials, it can also complete the drying and cooling of the material.

3. Its trough has two structures, separated and sealed.

4. According to different technical requirements, we can design size grading material screening shifter, inflammable and explosive screening elevator.

5. The product is small footprint, simple structure, low energy consumption, no noise and easy maintenance.

6. The product is widely used in metallurgy, mining, coal, building materials, chemicals, food, glass, ceramics and other industries.

Technical data:

Model Promote Capacity(t/h) Promote High(mm) Power2x(KW) Slot Diameter(mm) Voltage(V) Current2x(A) Dual Amplitude(mm)
SY-300 ≤0.5 ≤2500 0.37-0.75 300 380 1.2-2.2 6-8
SY-400 ≤1 ≤3500 0.75-1.1 400 380 2.2-3.1 6-8
SY-500 ≤2 ≤4500 0.75-1.5 500 380 2.2-4.0 6-8
SY-600 ≤3 ≤5000 0.75-2.2 600 380 2.2-5.6 6-8
SY-800 ≤4 ≤6000 1.1-2.2 800 380 3.1-5.6 6-8
SY-1000 ≤5 ≤6000 1.1-3.7 1000 380 3.1-8.4 6-8
