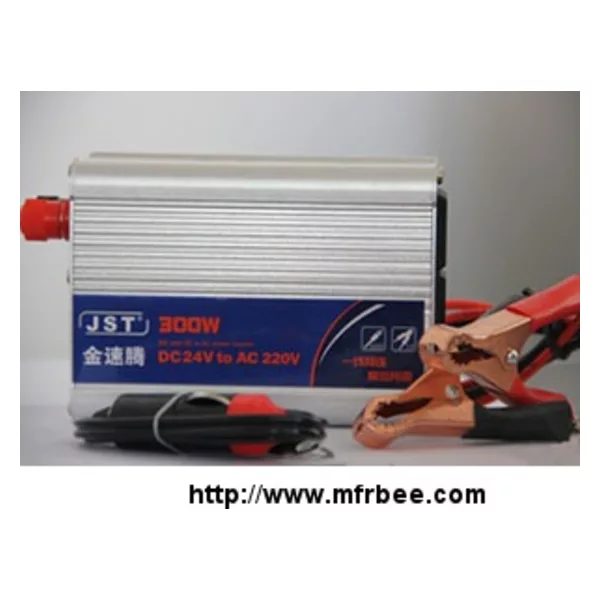

300W reg Inverter

Instructions for 24V 300W Car Power Inverter:

Working condition:

Put the product in the dry, ventilated and cool place. Keep the product away from water or rain.

Working(operating) temperature: 14°F-140°F ( -10℃--+60℃)

How to use:

1. Turn off the inverter switching. Insert the inverter cigar head into cigarette lighter socket of car. Please ensure that the inverter cigar head is connected well.

2. Please ensure that the electric appliance power is below nominal power of the power inverter. Insert the 220V plug of electric appliance into power inverter 220V socket. Then turn on change-over switch. If the green indicator light is lit, it shows that the power inverter works well. If the red indicator light is lit, check power inverter protection due to overvoltage, low-voltage, overload or over-temperature.

3. The cooling fan will work automatically when the inverter output power is more than 50W. If less 50W, the cooling fan will not work.

4. If the anode and cathode random connection of inverter happens, the inverter will not work normally. At this time, please remove the fuse. Displace it with another fuse. Then the inverter can work normally.

5. Technical parameters:

Input Voltage: 21V-29DC

Output Voltage: 200V-235VAC

Frequency: 50±2 Hz

Waveform: Square Wave

Fuse: 20A

Undervoltage alarm: 20V

Overvoltage alarm: 30V

No-load current: 0.2A

Maximum power: 260W

Protection temperature: 167°F (75℃)

6. Power Inverter Dimensions: 130*90.5*55mm

Net weight: 580g

Packing Box Dimensions: 162*162*61mm

7. Packing Carton Dimensions: 630*340*340mm

8. Packing quantity: 40pcs
