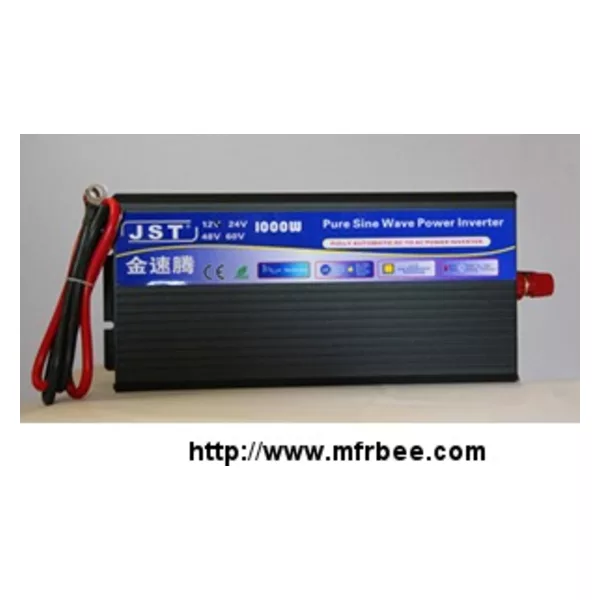

1000W low frequency Power Inverter

Model 1000W

Working condition:Put the product in the dry, ventilated and cool place. Keep the product away from water or rain.

Working Temperature 14°F~ 158°F ( -10℃~ +70℃)

Working Humidity 20%~90%(relative humidity)

Input Voltage range DC 12V/24V/48V

No-load current ＜0.7A

Output

Voltage range AC 100V/110V/120V/220V/230V/240V

Frequency 50/60±2 Hz

Waveform Pure Sine Wave

Maximum power 1000W

Peak power 2000W

Protection

Undervoltage alarm DC 10.5±0.2V/21±0.2V/42±0.5V

Undervoltage shutdown DC 10±0.2V/20±0.2V/40±0.5V

Overvoltage shutdown DC 15±0.2V/30±0.2V/60±0.5V

Protection temperature 167°F (75℃)

Package

Machine Size 341*150*70mm

Net weight 2.4±0.5KG

Packing Box Size 420*198*138mm

Packing Carton Size 435*415*300mm

Packing quantity/Carton 4 pieces

Other

Start :Soft Start

Cooling Ways:Cooling Fan

Storage Temperature -22°F~158°F（-30℃~ +70℃）

Efficiency ＞90%

Harmonic Content ＜3%
