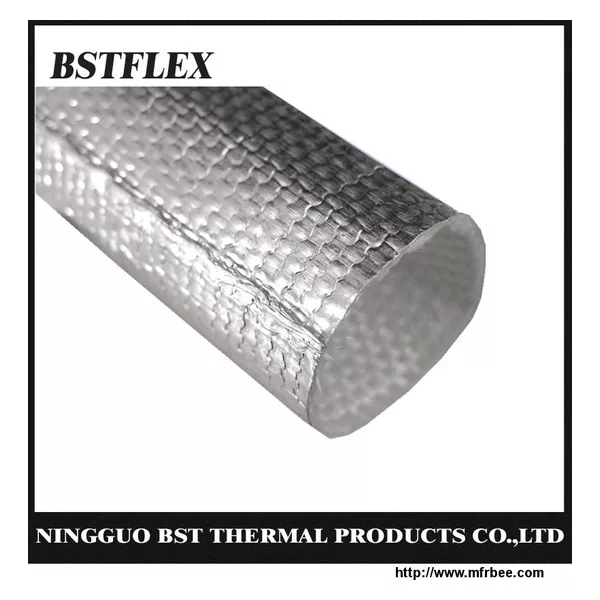

BST-ALFWS heat reflective aluminum coated fiberglass woven sleeve
Product Quick Detail
- FOB Price
- USD $3.00 / Piece
- Minimum Order
- 10
- Place Of Origin
- China (Mainland)
- Packaging
- heat reflective aluminum coated fiberglass woven sleeve pack carton box
- Delivery
- 3 Days
Specifications
BST-ALFWS is a heat reflective aluminum coated fiberglass woven sleeve and reflects more then 95% radiant heat. It is easily to install due to the smooth inner fiberglass surface.
It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.
Added protection can be achieved by layering with other sleeve materials underneath the reflective layer.
| Datasheet | ||||
| Part Number | Normal Inside diameter | Meter for spool | ||
| Inches | mm | Dash # | Meter | |
| BST-ALFWS-13 | 1/2 | 13 | -8 | 20 |
| BST-ALFWS-16 | 5/8 | 16 | -10 | 20 |
| BST-ALFWS-19 | 3/4 | 19 | -12 | 20 |
| BST-ALFWS-22 | 7/8 | 22 | -14 | 20 |
| BST-ALFWS-25 | 1 | 25 | -16 | 20 |
| BST-ALFWS-29 | 1 1/8 | 29 | -18 | 20 |
| BST-ALFWS-32 | 1 1/4 | 32 | -20 | 20 |
| BST-ALFWS-35 | 1 3/8 | 35 | -22 | 20 |
| BST-ALFWS-38 | 1 1/2 | 38 | -24 | 20 |
| BST-ALFWS-41 | 1 5/8 | 41 | -26 | 20 |
| BST-ALFWS-44 | 1 3/4 | 44 | -28 | 20 |
| BST-ALFWS-48 | 1 7/8 | 48 | -30 | 20 |
| BST-ALFWS-51 | 2 | 51 | -32 | 20 |
| BST-ALFWS-57 | 2 1/4 | 57 | 36 | 20 |
| BST-ALFWS-60 | 2 2/5 | 60 | -38 | 20 |
| BST-ALFWS-64 | 2 1/2 | 64 | -40 | 20 |
| BST-ALFWS-67 | 2 5/8 | 67 | -42 | 20 |
| BST-ALFWS-70 | 2 3/4 | 70 | -44 | 20 |
| BST-ALFWS-73 | 2 7/8 | 73 | -46 | 20 |
| BST-ALFWS-76 | 3 | 76 | -48 | 20 |
| BST-ALFWS-83 | 3 1/4 | 83 | -52 | 20 |
| BST-ALFWS-89 | 3 1/2 | 89 | -56 | 20 |
| BST-ALFWS-95 | 3 3/4 | 95 | -60 | 20 |
| BST-ALFWS-102 | 4 | 102 | -64 | 20 |
| Technical Datasheet | |
| Material | Aluminum, fiberglass |
| Working temperature | -40℃ - +260℃ |
| Flammability | VW-1 |
| Melting point | +537℃ |
| Standard Color | Silver |
| MOQ | 100 meter each size |
| Cutting tool | Scissors |
Notes:
Special thickness upon request
Special length or packing upon request.
Special size upon request.
