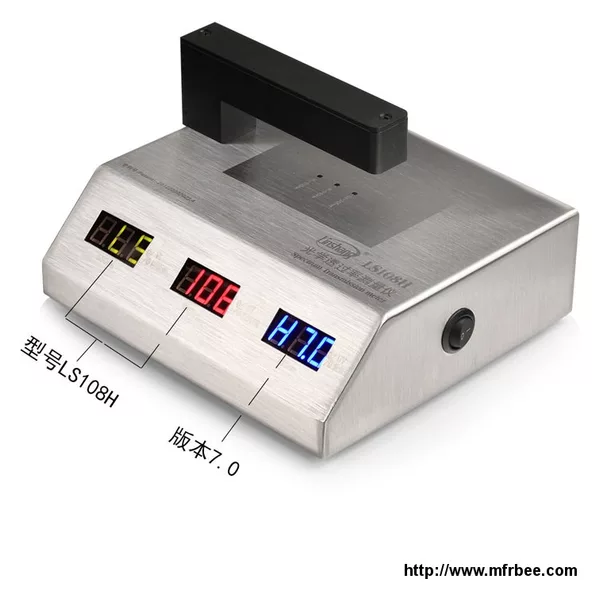

LS108H is able to simultaneously measure and display UV, Visible and Infrared transmission values. This meter is self-contained light sources and self -calibration. No adjustment is needed. The users only need plug the power supply, turn on the switch and put the sample in the testing position. The resulting performance data appear on the display.
Parameter
1. Size: 200mm*180mm*106mm(L*W*H)
2. Size of Testing sample: > ¢3mm
3. Weigh: 1500g
4. Resolution: 0.1%
5. Accuracy: ±2%(Colorless and transparent material)
6. UV Peak wavelength: 365nm
7. Visible light Peak wavelength: 550nm
8. IR Peak wavelength: 940nm
9. Power supply: 5V DC
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in ONE device.
2. Self-calibration and auto -calibration, NO need any manual adjustments
3. Simple operation, putting the testing sample in the testing position, UV, Visible and Infrared transmission values of the sample will simultaneously display.
The LS183 spectrum transmission meter use ultraviolet light source, infrared light source and visible light source to illuminate the tested transparent material. The sensor detects the light intensity of the three light sources and the light intensity after transmitting the ...
1. Three light sources share a test hole, which can obtain 380nm-760nm visible light transmittance, 940nm infrared and 365nm ultraviolet transmittance in one measurement, easy to operate and save time. 2. Parallel light design, the measurement results of testing large thickness ...
1. The test aperture of this lens transmission meter is 0.5mm. Materials whose size are larger than 0.5mm can be measured. 2. The three light sources share a test hole. Three data can be obtained by measuring for just one time. Easy to operate and save time. 3. The test hole ...
