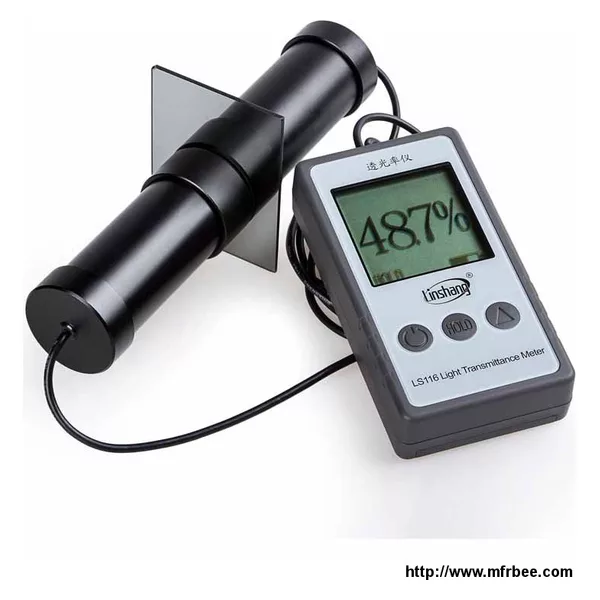

LS116 light transmittance meter is used for measure percentage of light transmitted through transparent material (such as glass, plastic substrates etc.). This meter is self-contained light sources and self -calibration. No manual adjustment is needed.
Parameter
1. Instrument Size: 130mm*70mm*28mm(L*W*H)
2. Sample diameter: > 10mm
3. Weigh: 500g (exclude batteries)
4. Resolution: 0.1%
5. Accuracy: ±1% (Colorless and transparent material)
6. Visible light wavelength: 380nm-760nm ( Full Weighted Spectrum)
7. Battery: 4*AAA alkaline battery
Feature
1. The light transmission meter has High repeatability and resolution
2. auto-calibration and simple calibration
3. High quality certified optical system for transmission value measurement
4. Simple and ease operation.
