LS125 Multi Probe UV Light Meter

The ultraviolet band including UVA (320nm-380nm), UVB band (280nm-320nm) and UVC band (200nm-280nm).

UVA wave band is mainly used for light curing, UV light exposure lithography, lithography, integrated circuit industry etc..

UVC band, also known as the short wave ultraviolet sterilization. What ultraviolet germicidal lamp issued is short ultraviolet band UVC.

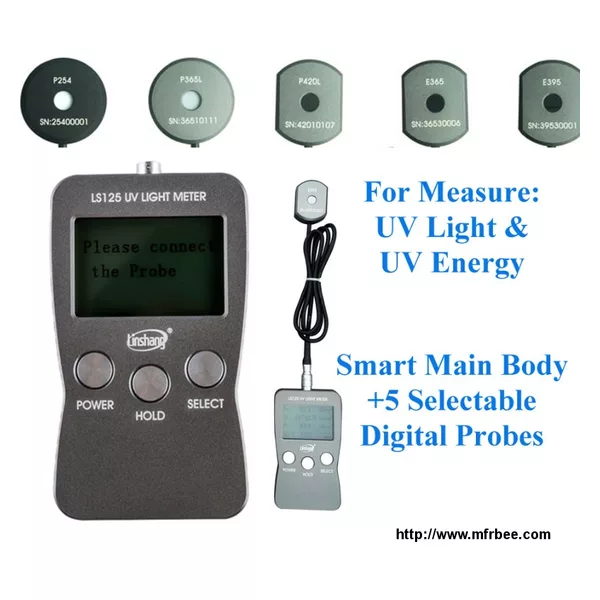

LS125 multi probe UV radiometer, using digital probe, plug design, instrument judge probe model intelligently. At the same time can support a variety of UV test probe, currently supports the following 5 kinds of UV Probes: P254, E365. E395, P365L, P420L

LS125 multi probe UV Light Meter

LS125 multi probe UV Light Meter, using digital probe, plug in type design, instrument intelligent judgment probe type. LS125 support UVA probe and UVC probe.

A: LS125 Main Body Paremeter

1. Instrument Weight:about 320g

2. Main Body Size:125mm × 72mm × 14.5mm (LXWXH)

3. Power supply: 2 AAA alkaline battery

4. Probe connection: push pull (SNAP)

B: Probe Parameter

1: P254 Probe

1) Response wavelength: 230nm-280nm; λp = 254nm

2) Measuring range:0 - 200000 uW/cm2

3) Resolution: 0.1 μW/cm2

4) Accuracy: ±10 %

5) Test Hole Diameter: Φ10

6) Probe Size: Diameter 46mm×Thickness 16.1mm

2: P365L Probe

1) Response wavelength:260nm-400nm; λp = 365nm

2) Measuring range:0-200000uW/cm2

3) Accuracy: ±10 %

4) Resolution: 0.1 uW/cm2

5) Test Hole Diameter:Φ10

6) Probe Size: Diameter 46mm×Thickness 12.2mm

3: P420L Probe

1) Response wavelength:340nm-420nm;λp = 395nm

2) Measuring range:0-200000uW /cm2

3) Accuracy: ±10 %

4) Resolution: 0.1 uW /cm2

5) Test Hole Diameter:Φ9.2

6) Probe Size: Diameter 46mm×Thickness 14.6mm

4: E365 Probe

1) Response wavelength:320nm-400nm; λp = 365nm

2) Power Measuring range:0 - 10000 mW/cm2

3) Energy Measuring range: 0 --- 999999mJ/cm2

4) Accuracy: ±10 %

5) Resolution: 0.1 mW/cm2

6) Test Hole Diameter:Φ9.2

7) Probe Size: Diameter 46mm×Thickness 14.6mm

5: E395 Probe

1) Response wavelength:340nm-420nm;λp = 395nm

2) Power Measuring range:0-20000mW/cm2

3) Energy Measuring range: 0 --- 999999mJ/cm2

4) Accuracy: ±10 %

5) Resolution: 0.1 mW/cm2

6) Test Hole Diameter:Φ9.2

7) Probe Size: Diameter 46mm×Thickness 14.6mm
