Auomatic Stacking Machine

Place Of Origin
China
Minimum Order
1
Packaging
Normal Exporting Packages
Delivery
45 Days

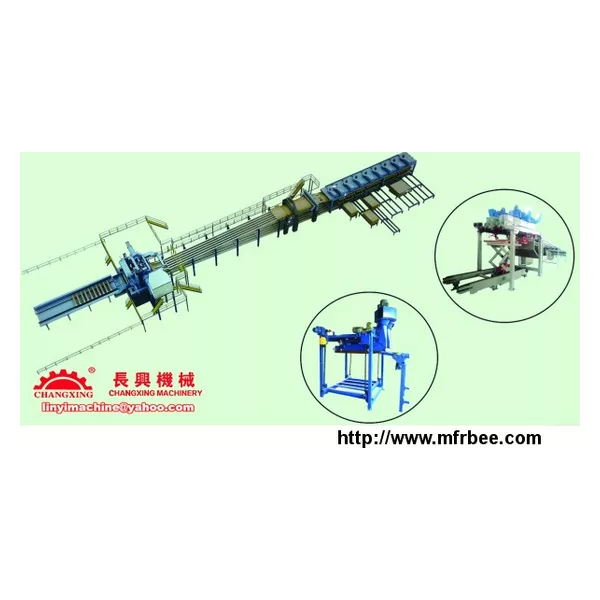

This machine is designed for automatic classification and stacking of rotary cut veneers.It adopts vacuum absorption conveying,and its high efficiency can save 3 manpowers,This solves the classifying and stacking problems for rotary cutting veneer factories.

Production Parameter Model CXDD48-2 CXDD36 CXDD48 CXDD44 Stacking Size 4'X8' 3'X6' 4'X8' 4'X4' Maximum Length 2600mm 200mm 1350mm 1350mm Maximum Width 2200mm 2200mm 800mm 1100mm Veneer Thickness 1.0-4.0mm 1.0-4.0mm 1.0-4.0mm 1.0-4.0mm Maximum Speed 90m/min 90m/min 90m/min 90m/min Maximm Stacjing Height 1000mm 1000mm 1000mm 1000mm Total Power 24kw 24kw 20.95kw 13.6kw Dimensions 9000X3100X3510mm 8800X2500X3510mm 9800X2400X23080mm 85600X2400X3080mm Weight 4700kgs 4000kgs 4800kgs 2500kgs
