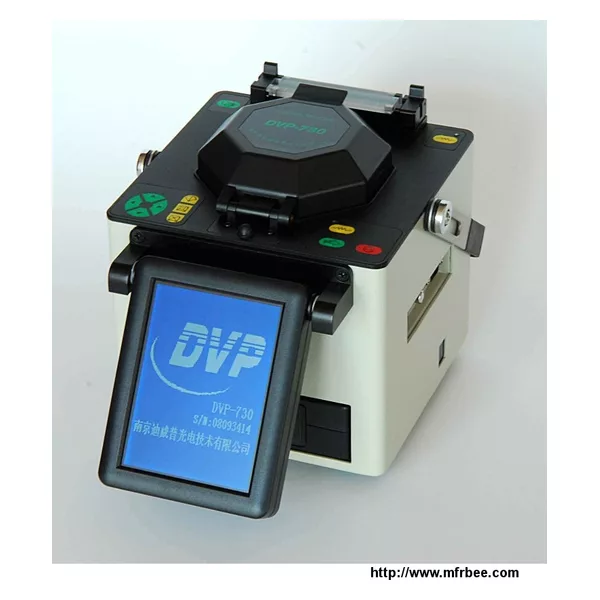

DVP-730 Single Fiber Fusion Splicer
Product Quick Detail
- Working Temperature
- -40'c--+70'c
- Minimum Order
- 1
- Place Of Origin
- China(Mainland)
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
DVP-730 Single Fiber Fusion Splicer
Model: DTS-4040
Specifications
| Applicable fibers | SM, MM, DS. NZ-DS, EDF |
| Cladding diameter | 100 to 150um |
| Coating diameter | 100 to 1000um |
| Fiber cleaved length | 8-22mm(standard) |
| Splicing mode | Auto & Manual |
| Average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Return loss | ≥60dB |
| Environment conditions | -25~+50℃(operation temperature), 0~95％RH(humidity), 0~5000m (altitude) |
| Storage environment | -40~80℃(temperature), 0~95％RH(humidity) |
| Protection sleeve length | 20 mm, 40 mm, 60mm |
| Tension test | 2.0N (Standard) |
| Language | English , Chinese, Korea, Russian, Spanish etc. |
| interface |
RS232 interface & video output
AC adaptor : 85~260V input voltage |
| Power supply |
Internal battery: 12V voltage , 10Ah, than 200 times of continuous splices and heats.
DC adaptor : 12V voltage , optional multipurpose external battery |
| Dimensions | 170(W) x 140(H) x 170(D) mm |
| Weight | 3.3kg |
Description
Fusion Splicer, AC adaptor AC power cord Internal battery Charger Spare electrode
Cooling tray Manual instruction Carry case Fiber cleaver Fiber stripper
