Specifications

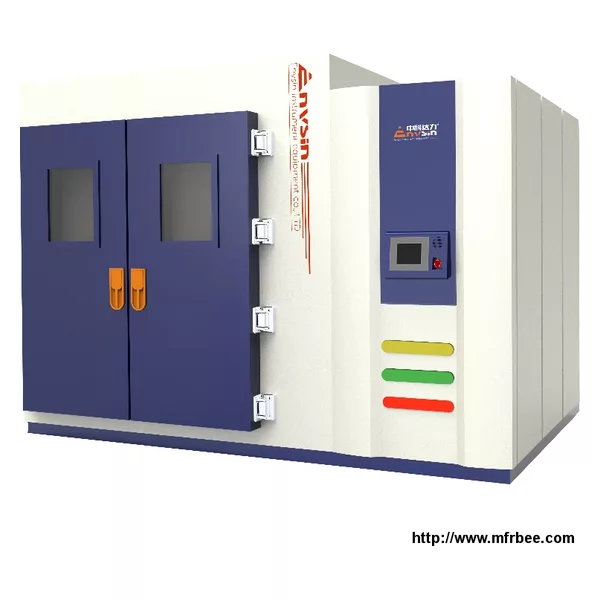

Walk-In High and Low Temperature (Humidity) Cycling Test Chambers
ETZ High and Low Temperature Chambers ETZ8/4010 ETZ12/4010 ETZ17/4010 ETZ22/4010 ETZ28/4010
ECZ Humidity Cycling Chambers ECZ8/010 ECZ12/010 ECZ17/010 ECZ22/010 ECZ28/010
ETCZ Climate Cycling Chambers ETCZ8/4010 ETCZ12/4010 ETCZ17/4010 ETCZ22/4010 ETCZ28/4010
Test Area Volume m3 8.0 12.0 17.0 22.0 28.0
Test Area Dimension 2,000 2,000 2,250 2,250 2,250
W×D×H (mm) 2,000 2,000 2,500 2,500 2,500
2,056 3,040 3,032 4,016 5,000
Exterior Dimension 2,240 2,240 2,490 2,490 2,490
W×D×H mm 2,240 2,240 2,740 2,740 2,740
3,800 4,780 4,900 5,880 6,860
Floor Load-bearing Capacity N/㎡ 30000(N/4cm:1500)
ETZ Series (608,6010,6015,6018,408,4010,4015,4018) -60,-40℃ / +80℃,+100℃,+150℃+180℃ optional
Temp. Range (No Load ) ℃ ECZ Series (08,010) 0℃ / +80℃,+100℃ optional
ETCZ Series (608,6010,6015,408,4010,4015) -60℃,-40℃ / +80℃,+100℃,+150℃ optional
Humid. Range %RH 15~95 (ETZ、ETCZ系列)
Dew point Temp. Range ℃ +4~+59 +4~+95
Heat Up/Cool Down Temp. Rate (IEC60068-3-5)
Temp. Fluctuation K ±0.1~±0.5 (IEC60068-3-5)
Temp. Uniformity K ±0.5~±3.0 (IEC60068-3-5)
Humid. Fluctuation %RH ±1.0~±5.0 (IEC60068-3-5)(ECZ, ETCZ Series)
Entry Door Dimension mm 900×1900(Single door W×H) , 2000×2000 (Double door W×H)
Power AC 380V±10%, 50HZ , 3/N/PE
Features:
The modular construction and variability in size and equipment is ideally
for costumers’specific application.
All welded installation techniques ensure durability and deformation.
Exhaust system ensure safety when no power.
Patent of ultrasonic humidification system, which ensures feasibility in
high thermal load.
Intelligent 32 bit measuring and control system with colorful screen.
Interface USB and Ethernet.
APP mobility management.
Programmable power outlet with 4-CH. ON/OFF output control, to
ensure safety.
Patented air circulation system improves test’s accuracy.
Protect sample from condensation,over-temperature , smoke, breezeless.
Network video monitoring is synchronized with test data.
Automatic water supply device is equipped with ultrapure filtration system
and water shortage reminder.
Environmental servo refrigerant flow control for energy saving and quick
heat-up/cool-down rate.
Without defrosting, during operating in low.
Uniquely operation mode makes testing zone’s temperature back to R.T
after test, which protects sample status.
Automatic reminder of maintenance time of equipments and software of
fault records.
Optional remote service function and video CD of equipment operation.
