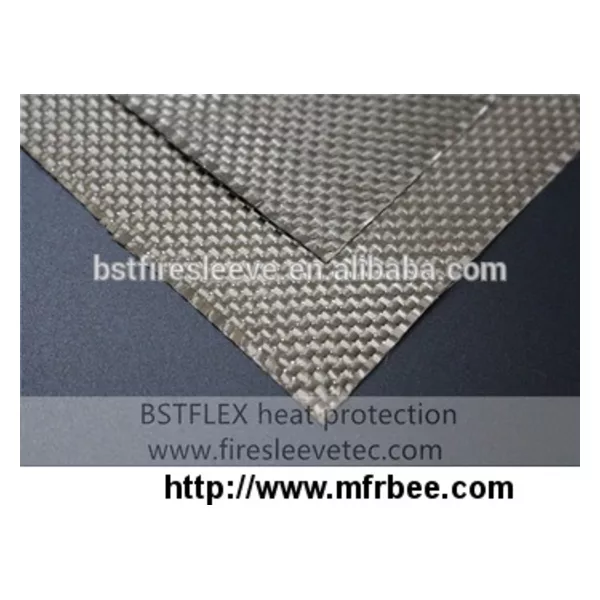

Titanium Basalt Fiber Fabric
Product Quick Detail
- Basalt Melting Point
- 982°C
- Basalt Fiber Fabric Thickness
- 0.18-0.9mm
- Woven
- plain/twill
- Place Of Origin
- China
- Flammability
- Non-combustible
- Working Temperature
- 1200°F / 648°C
- Basalt Fiber Fabric Weight
- 130-1000gsm
- Tensile Strength
- high
- Minimum Order
- 50
- Electromagnetic Radiation Resistance
- good
- Packaging
- upon request
- Delivery
- 5-7 Days after payment
Specifications
Titanium Basalt Fiber Fabric: 1200°F / 648°C Continuous Exposure: Higher Intermittent
Titanium Basalt Fiber Fabric is made from crushed volcanic rock. This heat shield insulator helps to reflect radiant heat away to provide an air box heat shield, lowering your intake temperatures. Lava Shield Mat can also be laid on a fire wall to shield radiant heat, transmission tunnel, or floor pan. In addition to having both reflective and insulating properties, the Basalt fiber has excellent natural chemical resistance, water resistance, even acid resistance. This heat shield barrier fabric, can be used with less than 1” of airspace, 3/8” minimum is recommended for use with the heavy duty Basalt Fiber Shield Mat. Our Fabric withstands 648 Deg C direct continuous and 982 Deg C intermittent. The raw form of this fabric, can even be laid up like carbon for fiberglass. Bulk rolls available upon special requests.
| Titanium Basalt Fiber Fabric Thickness | 0.18-0.9mm |
| Titanium Basalt Fiber Fabric Weight | 130-100gsm |
| Titanium Basalt Fiber Fabric Width | 1 meter |
| Titanium Basalt Fiber Fabric Temp | Continuous operating temperature of 648 Deg C, 982 Deg C intermittent |
| Titanium Basalt Fiber Fabric Property | Capable of reducing up to 80% of radiant heat |
| Titanium Basalt Fiber Fabric Application | Helps shield fire walls, hoods, body panels, floor boards |
| Remarks | Bulk rolls available |
