Low Air Pressure DTH Hammer for sale
The DTH Hammer is the working installation of the DTH Drill, dividing into low,mediumand high air pressure series, widely used to pore-forming operations on Metallurgy, Coal, Chemical, Mine, Water conservancy, Hydropower, Highway, Railway, Defense and Building projects, suitable for dry-type and wet-type operation, an ideal hole-drilling equipment with reliable capability.
Outstanding advantages:
1. Deep hole drilling capacity
2. Reliable performance
3. Easy to disassembly.
Main specifications and technical parameters:
Low air pressure series:
Type | Drill hole Dia. (mm) | Outside Dia. (mm) | Length Without Bit (mm) | Weight (kgs) | Working Pressure (Mpa) | Air Consumption (m³/min.) | Drilling Rod Used |
SF-76 | 76 | 65 | 811 | 13.5 | 0.5-0.7 | 4.0 | Φ42 Φ50 |
SF-90A | 95 | 80 | 855 | 22 | 0.5-0.7 | 7.0 | Φ50 Φ60 |
SF-110A | 110 | 98 | 871 | 33 | 0.5-0.7 | 11 | Φ50 Φ60 |
SF-115 | 105-120 | 98 | 1030 | 38 | 1.0-2.0 | 10-20 | Φ76 |
SF-130 | 135 | 112 | 914 | 48.5 | 0.7-1.0 | 7-12 | Φ60 |
Medium air pressure series:
Type | Drill hole Dia. (mm) | Outside Dia. (mm) | Length Without Bit (mm) | Weight (kgs) | Working Pressure (Mpa) | Air Consumption (m³/min.) | Drilling Rod Used |
SF-345 | 110-130 | 105 | 947 | 39 | 1.2-2.0 | 5.7-14.2 | Φ76 |
SF-930 | 90-100 | 80 | 870 | 24 | 0.9-1.2 | 6.0 | Φ60 |

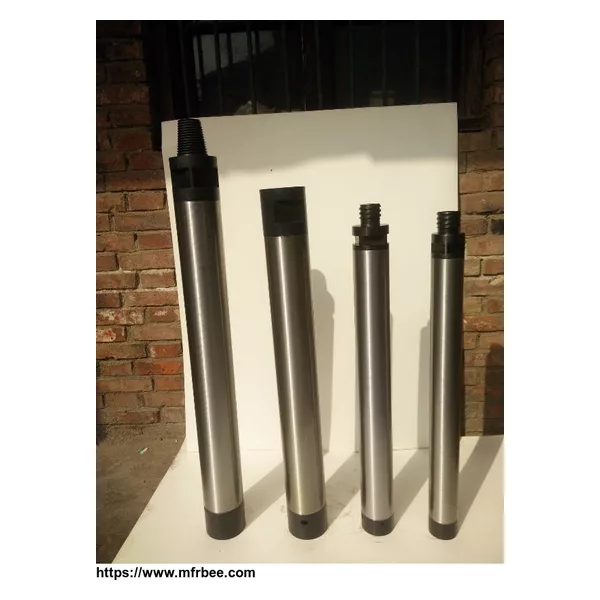

Pictures of Products:
Packaging and Shipping as your requirements.
Luoyang Tangyu Trade Co., Ltd., established in 2014, is located at Luoyang, the important industry city of China. We are engaged in import and export business of Mining machinery equipments, Construction materials, Minerals and Chemicals, Refractory materials, Electronic products and Primary agricultural products, etc.
We are a new enterprise based on technical research, production and sales. Our sub-factory: Luoyang ShiFeng Machine Co., Ltd., established in 1992, specialized in machinery manufacturing and mechanical design.Its main products are YN27/YN27C/YN30A/YN30A-1 Internal Combustion Rock Drills, high/medium/low air pressure DTH Hammers and Drilling Bits or Rods. We have won a number of technical patents and awards. Our products have been exported to American, England, Canada, South Africa, Vietnam, Pakistan, Yemen,Afghanistan and other countries.
We also operate Crusher, Roller, Excavator, Loader and other large engineering machinery and equipments.
Guiding by new products and advanced technology, insisting on the tenet of “Quality First, Prestige First, and Service First”, we are eager to serve customers in domestic and abroad sincerely.
The information you may like to know before order:
1. About methods of Payment:
T/T or L/C or Western Union.
2. About handling time for an order
Based on order quantity, normally it takes 15-60 days for production.
3. About shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. About Quality
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
We supply better products than our counterparts at the lowest price because of our low labor cost and more than 20 years advanced production technology and experience.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality
