The biomass briquette machine is designed to press loose biomass residues into high density solid blocks to be used as a fuel. Amisy can provide you high-quality biomass briquette machine with lower price and superior after-sales service.

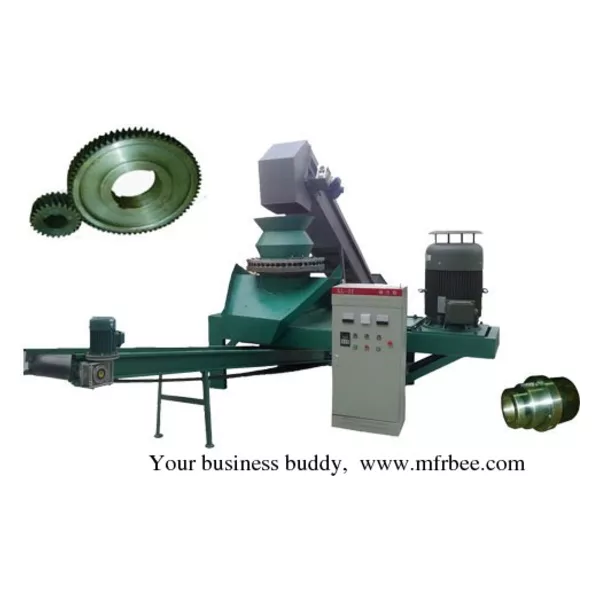

Introduction of Ring Die Biomass Briquette Machine
The biomass briquette machine is designed to press loose biomass residues, such as sawdust, rice husk and straw etc., into high density solid blocks that can be used as a fuel. Our biomass briquette machine is centrifugal ring die biomass briquette machine with high efficiency, low power consumption and good molding effect.
Materials for Biomass Briquetting
The best materials for biomass briquetting are sawdust and other woody residues, because they contain a high proportion of lignin. However, most dry agricultural residues can be used if
they are ground into powder. The materials include cornstalks, wheat straws, cottonseed hulls, rice straws, rape straws, beanstalks, herbages, alfalfas, peanut vines, peanut shells,
sweet potato vines, fire woods, branches, wheat husks, furfural residues, reeds and bamboo threads etc.
Ring Die Biomass Briquette Machine Features and Advantages
★The machine is with reasonable structure and equipped with forcing lubrication system, which can perform stably.
★High efficiency, low power consumption, good molding effect.
★Special die structure, suitable for processing crop straws with various moisture.
★The material size should be 3-30mmm, and the moisture content should be 16%-30%.
★The machine is easy to operate, two or three people is enough.
★The product density can be adjusted between 0.8-1.2t/m3 according to the need.
★Equipped with automatic electric heating device, the material temperature can be adjusted quickly; thus it can solve the material blocking and bad molding problems.
What are the Benefits of Briquetting? Briquetting is a good way to make full use of the biomass residues that would otherwise go to waste, and replace the use of wood and charcoal and fossil fuels, thus cutting greenhouse gas emissions. Wood briquettes are easier to store and use for cooking than wood, because they are uniform in size and composition. They are much cleaner to handle than charcoal or coal, and producing less local air pollution. |
The Future of Biomass Briquetting Wood briquettes have been used as fuel by more and more people because they can be used in automated boilers for space heating, also it can be used for industry use. In many countries there are significant resources of biomass residues, which are not needed for agriculture. Thus as the cost of conventional fuels increases, the use of biomass briquettes and pellets is likely to grow. So biomass briquetting is an ideal choice for investing. |
Biomass Briquette Machine Technical Parameters
Model | TRM-YKHP760 | TRM-YKHP810 | TRM-YKHP980 | TRM-YKHP1000 |
Power | 30Kw | 37Kw | 45Kw | 55Kw |
Capacity | 1-1.2t/h | 1.3-1.8t/h | 2-2.5t/h | 2.8-3t/h |
Rotary Speed | 980r/min | 980r/min | 980r/min | 980r/min |
Voltage | 380V | 380V | 380V | 380V |
Die Diameter | 760mm | 810mm | 980mm | 1000mm |
Die Hole Quantity | 30 | 36 | 42 | 60 |
Briquette Specification | 32*32mm | 32*32mm | 32*32mm | 32*32mm |
Material Length | 3-60mm | 3-60mm | 3-60mm | 3-60mm |
Material Moisture | 15-30% | 15-30% | 15-30% | 15-30% |
Briquette Density | 0.8-1.4t/m3 | 0.8-1.4t/m3 | 0.8-1.4t/m3 | 0.8-1.4t/m3 |
Briquette Temperature | <100℃ | <100℃ | <100℃ | <100℃ |
Dimension | 2700*1000*1800mm | 2700*1100*1800mm | 2700*1100*1800mm | 2700*1200*2000mm |
Weight | 2.5Ton | 2.8Ton | 3.2Ton | 4.3Ton |
