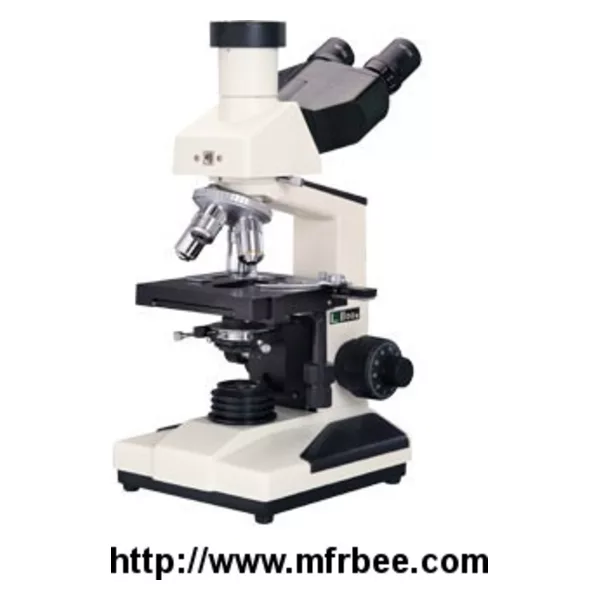

Model | MC-1180 |
Eyepiece | WF10X(Ø18mm) |
Objective | Achromatic 4X/0.10 |
Achromatic 10X/0.25 | |
Achromatic 40X/0.65(Spring) | |
Achromatic 100X/1.25(Spring, oil) | |
Digital trinocular |
Built-in clear color 1/2" CMOS sensor , the dynamic resolution is 1280X1024(UXGA) , USB2.0 System requirement:Windows 2000 @SP4 / Windows XP @SP2/ Windows Vista |
Focus system |
Coaxial coarse/fine focus system. Minimum division of fine focusing: 2μm |
Nosepiece |
Quadruple (Frontward ball bearing inner locating) |
Stage |
Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm) |
Abbe condenser | N.A.1.25 Rack & pinion adjustable |
Filter | Blue filter |
Frosted filter | |
Collector | For halogen lamp |
Light source | 6V 20W Halogen lamp with brightness control |
▲ Optional Accessories:
Name | Sort/Technique parameter |
Eyepiece | Wide field WF16X(Ø11mm) |
Dividing 10X(Ø18mm), 0.1mm/Div | |
Objective | Semi-plan achromatic SP 4X/0.10 |
Semi-plan achromatic SP 10X/0.25 | |
Semi-plan achromatic SP 20X/0.40(Spring) | |
Semi-plan achromatic SP 40X/0.65(Spring) | |
Semi-plan achromatic SP 100X/1.25(Spring, oil) | |
Nosepiece | Quintuple(Frontward ball bearing inner locating) |
Filter | Green filter |
Yellow filter | |
Digital trinocular |
Built-in clear color 1/2" CMOS sensor, the dynamic resolution is 1600X1200 (UXGA). USB2.0 System requirement:Windows 2000@ SP4 / Windows XP @SP2 |
