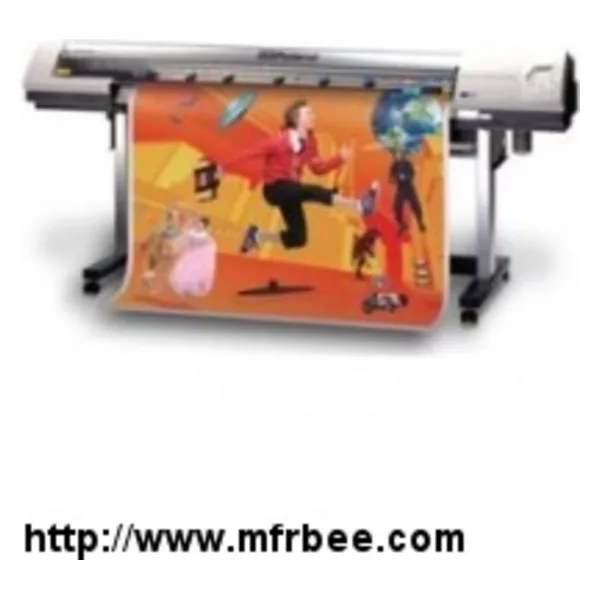

Roland VersaCAMM VP-300i Printer/Cutter
Product Quick Detail
- FOB Price
- USD $2,518.00 / Piece
- Place Of Origin
- Indonesia
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 25 Days
Specifications
Accept Paypal
The VersaCAMM Series is highly versatile for an endless range of applications. With just one device, you can produce decals, labels, stickers, posters, POP, vehicle wraps, heat transfers for apparel decoration and other promotional items of any size, on demand for both indoor and durable outdoor display. Use a wide variety of media, including adhesive-back vinyl, banner, paper, film, tarpaulin and heat transfer paper.
With the VersaCAMM, you can achieve professional quality results even without any previous experience. Roland Intelligent Pass Control technology automatically delivers the smooth gradations and
flawless solid colors you require. It also increases your productivity. The VersaCAMM VP-i series is a full 80 percent faster than the previous model in standard mode.
*1 New environmentally-friendly FPG2 aqueous ink is also available for the VP-540i/300i.
*2 ECO-SOL MAX ink produces vivid colors for durable graphics. FPG2 inks are ideal color reproduction such as photorealistic graphics.
Every VersaCAMM comes with VersaWorks, our own RIP software for professional print quality. VersaWorks features the Roland Color System to accurately reproduce the spot colors you select from Roland Color charts and swatch books. Variable Data Printing makes it easy to create a series of individualized prints based on one template, with each print featuring its own photos, messages, numbers and names. In addition, VersaWorks estimates the ink usage and print time for each graphic so you can accurately monitor your time and costs. You can also update your software automatically through the Internet.
Roland VersaCAMM VP-300i Printer/Cutter
Technical Specs & Details
| Model | VP-540i | VP-300i | |
| Printing technology | Piezoelectric inkjet | ||
| Media | Width | 210 to 1,371 mm (8.3 to 54 in.) | 182 to 762mm (7.2 to 30 in.) |
| Thickness | Maximum 1.0 mm (39 mil) with liner, for printing Maximum 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting | ||
| Roll outer diameter | Maximum 180 mm (7 in.) | ||
| Roll weight | Maximum 30 kg (66 lb.) | Maximum 20 kg (44 lb.) | |
| Core diameter | 50.8 mm or 76.2 mm (2 in. or 3 in.) | ||
| Printing/cutting width*1 | Maximum 1,346 mm (53 in.) | Maximum 736 mm (29 in.) | |
| Ink cartridges | Types | Exclusive Roland ECO-SOL MAX or FPG2 Aqueous Ink | |
| Capacity | 220 cc or 440 cc | ||
| Colors | Four colors (cyan, magenta, yellow, and black) | ||
| Printing resolution (dots per inch) | Maximum 1,440 dpi | ||
| Cutting speed | 10 to 300 mm/s | ||
| Blade force | 30 to 300 gf | ||
| Blade offset | 0 to 1.5 mm (0 to 0.059 in) | ||
| Software resolution (when cutting) | 0.025 mm/step | ||
| Distance accuracy (when printing) *2 *3 | Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater | ||
| Distance accuracy (when cutting) *3 | Error of less than ±0.4% of distance traveled, or ±0.3 mm, whichever is greater When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled, or ±0.1 mm, whichever is greater | ||
| Repetition (when cutting) *3 *4 | ±0.1 mm or less | ||
| Alignment accuracy for printing and cutting *3 *5 | ±0.5 mm or less | ||
|
Alignment accuracy for printing and cutting when reloading media *3 *6 |
Error of less than ±0.5% of distance traveled, or ±3 mm, whichever is greater | ||
| Media heating system *7 | Print heater, setting range for the preset temperature: 30 to 45°C (86 to 112°F) Dryer, setting range for the preset temperature: 30 to 50°C (86 to 122°F) | ||
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements |
AC 100 to 120 V ±10%, 7.6 A, 50/60 Hz or AC 220 to 240 V ±10%, 3.9 A, 50/60 Hz |
AC 100 to 120 V ±10%, 5.5 A, 50/60 Hz or AC 220 to 240 V ±10%, 2.8 A, 50/60 Hz |
|
| Power consumption | During operation | Approx. 1,030 W | Approx. 730 W |
| Sleep mode | Approx. 14 W | Approx. 14 W | |
| Acoustic noise level | During operation | 64 dB (A) or less | 64 dB (A) or less |
| During standby | 40 dB (A) or less | 40 dB (A) or less | |
| Dimensions | With Stand | 2,310 (W) x 740 (D) x 1,125 (H) mm [90.9 (W) x 29.1 (D) x 44.3 (H) in.] | 1,700 (W) x 740 (D) x 1,125 (H) mm [66.9 (W) x 29.1 (D) x 44.3 (H) in.] |
| Weight (with stand) | 112 kg (247 lb.) | 89 kg (196 lb.) | |
| Environmental | Power on | Temperature: 15 to 32°C (59 to 90°F) [20°C (68°F) or more recommended], Humidity: 35 to 80%RH (non-condensing) | |
| Power off | Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80%RH (non-condensing) | ||
| Included items | Stand, power cord, blade, blade holder, media clamps, media flanges, replacement blade for separating knife, cleaning kit, software RIP, and user's manual, etc |
*1 The length of printing or cutting is subject to the limitations of the program.
*2 Using Roland specified media, print travel of 1 m, temperature: 25°C (77°F), humidity: 50%RH
*3 Not assured when the print heater or dryer is used.
*4 Using Roland specified media, loaded on the shaft, [PREFEED] menu item must be set to "ENABLE," with 25 mm or more for both right and left margins and 35 mm or more front margin, excluding
expansion or contraction of the media.
VP-540i: Media 610 mm wide or over and 4,000 mm long. Media 610 mm wide or less and 8,000 mm long. VP-300i: media 3,000 mm long.
*5 Provided that media length is under 3,000 mm. Temperature: 25°C (77°F) Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.
*6 Using Roland specified media, data size: 1,000 mm in the media-feed direction, 1,346 mm (VP-540i) or 736 mm (VP-300i) in the carriage-movement direction. No lamination. Automatic detection of
crop marks at 4 points when media is reloaded.
During cutting, [PREFEED] menu item must be set to "ENABLE." Temperature: 25°C (77°F) Excludes the influence of misalignment, expansion or contraction of the media.
*7 Warm-up is required after powerup. This may require 5 to 20 minutes, depending on the operating environment. The preset temperature may fail to be reached depending on the ambient temperature
and media width.
| Roland VersaWorks System Requirements | |
| Operating system |
Windows® 7 Professional/Ultimate (32/64-bit); Windows Vista® Business/Ultimate (32/64-bit); Windows® XP Professional Service Pack 2 or later (32/64-bit) |
| CPU | Core™2 Duo, 2.0 GHz or faster recommended |
| RAM | 2 GB or more recommended |
| Video card and monitor | A resolution of 1280 x 1024 or more recommended |
| Free hard-disk space | 40 GB or more recommended |
| Hard-disk file system | NTFS format |
| Optical drive | DVD-ROM drive |
| *Roland VersaWorks® is a 32-bit application, which runs on 64-bit Windows® with WoW64 (Windows 32-bit on Windows 64-bit). |
| Roland VersaWorks-Compatible Application Software |
| Adobe® Illustrator® 10, CS, CS2, CS3, CS4, CS5 / CorelDRAW® 11, 12, X3, X4, X5 |
