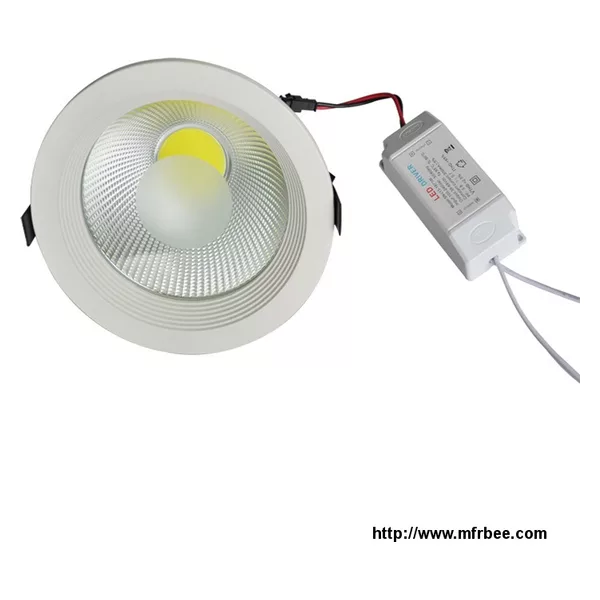

Down light

1.COB Down Light Advangage

1) Heat dissipation : Fast Cooling speed , Reduced space requirements,

2) Production process : Higher reliability due to better heat distribution and a lower number of solder joints;

3) Optimized thermal management : Heat distributed across a larger surface for immediate dissipation, with lower junction temperature, which brings improved Lumen Maintenance over product lifespan.

2. Down Light Item Feature

1) . White head made of fire-proof material and black body made of aluminum.

2) .The middle of High transmittance glass is frosted, to avoid glare and dazzling.

3) . Reflective cup with good focusing effect , emitting angle is 120 degree.

4) . The COB led made of 0.2w epistar chips.Efficiency is 100-110LM/ W

5) . Input 85-265V, Adopt series circuit,with function of automatic protection circuit.

6) . The cob downlight pass CE, ROHS

3.The Chip of down light led Using:

• Epistar cob led,high efficiency ,up to 110lm/w.
• High CRI and high brightness.
• Lighting softly and low decay.
• Bridgelux and Cree LED Chip also available as customer's requirements.

4.The Power supply for down light led :

• Adopting good quality brand LED Driver in China
• High power efficiency and power factor(PF>0.9)
• SAA,CE&RoHS approved ,all of led drivers will be tested before using.
• Dimmable driver for optional.
• Meanwell Driver also can be adopted according to your needs.

5.Down light led Housing:

• High Quality Die-casting Aluminum shell, thicker heat dissipation, durability, Anti-corrosion.
• High intensity PC lens, 92% light transmission rate, light-emitting uniformity.
• Male and female connector: easy to assemble and disassemble.
• With reflector ,lighting softly and no dark place .
