Livestock fencing panels and fence post - Galvanized and PVC

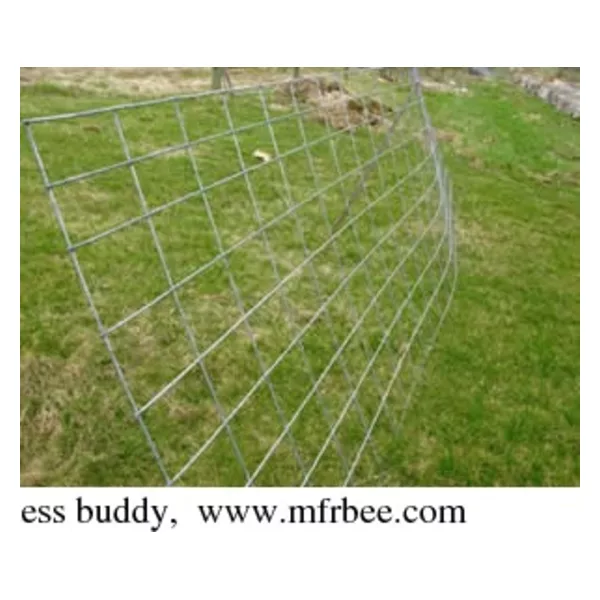

Livestock Fencing Consists Of Livestock Panel And Fence Post

The livestock fencing is designed to provide cost efficient, high strength components that have excellent blanking effect in drafting and forcing areas and durability in receiving and holding yards.

Materials: Low carton steel wire, stainless steel wire, iron wire, Galvanized steel wire, PVC coated iron.

Features: Smooth and trim mesh surface, sold and uniform structure and superior integral performance, it won't loosen even subject to local cutting or pressure, it has the characteristics of corrosion-resisting and oxidation-resisting.

Application: They are used for garden, feeding agriculture, fishing, poultry, mine field, lawn cultivation, and profession's guard, decorate machine protection.

Specification:

Galvanized or PVC coated livestock fencing panels (Welded mesh panel)

Mesh Sizes Wire Diameter

In inch In metric unit(mm)

1/4 inch × 1/4 inch 6.4mm ×6.4mm 0.6-2.0mm

3/8 inch × 3/8 inch 10.6mm ×10.6mm 1.0-2.0mm

1/2 inch × 1/2 inch 12.7mm ×12.7mm 1.0-2.0mm

5/8 inch × 5/8 inch 16mm ×16mm 1.0-2.5mm

3/4 inch × 3/4 inch 19.1mm ×19.1mm 1.2-2.5mm

1 inch × 1/2 inch 25.4mm ×12.7mm 1.0-3.5mm

1-1/2 inch × 1-1/2 inch 38mm ×38mm 2.0-5.0mm

1 inch × 2 inch 25.4mm ×50.8mm 2.0-6.0mm

2 inch × 2 inch 50.8mm ×50.8mm 2.0-6.0mm

Technical Note:

1.Standard panel size: 3 ft. ×6 ft. ,4 ft. × 8 ft. , 3 ft. ×12 ft., 4 ft. ×12ft.

2.Special sizes available at request

3.Packing: in pallet. according to customer's request

Livestock Fence Panel Sizes:

Panel welded and electro galvanized 60-100g/m2 and powder spray painting 100 microns

wire diameter: 5mm after paint

Wire diameter before process (zinc + paint) 4.8mm

Wire type: high carbon electro galvanized after welding

mesh: 200×50 mm

Length: 2.5mt

Width: 2mt

Folds: 4 (85mm)

Weight: 20kg/m2

Color: Green, red and White

Livestock Fence Post:

Hot dipped galvanized 100 gr/m2 inside and outside, then powder sprayed coating 100 microns

size: 57×57mm inside diam.

thickness: 1.5mm

Height: 2.5m

Weight: 25kg/m2

Color: Green and white

Finish: Plastic UV protected caps Steel clamps (HDG + powder spray)

Rail Panels, Below Are The Details And Sizes

Height: 1000mm

Panel Length: 2400mm

Outer Frame: 25mm Galv Pipe - 2mm wall thickness

Internal Bars: 20mm Galv Pipe - 2mm wall thickness

Centre Strap: 25mm x 4mm Galv flat steel

Locking Pin: One per panel - 800mm long 16mm thick.
