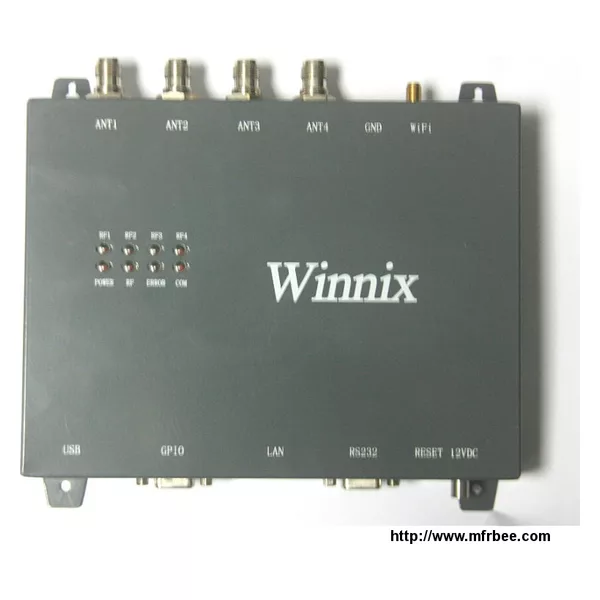

HYR830 adopts Impinj R2000 module, maximum power output is 31dbm.
4 RP TNC ports, with an 12dbi circular polarized antenna, reading distance can
reach 24 meters.
Reading speed is 400 tags/sec.
Support LBT function.
Support dense reader working mode(DRM)
8 LED lights, real-time display working status.
Many external ports, Including network interface, RS232,GPIO_IN*4,
GPIO_OUT*4,RS485,wiegand,CAN,USB,WIFI, can meet different client's
requirement.
Excellent read and write performance, it is suitable for complicated environment
application, for example logistics, clothing, asset management etc.
Technical Specifications
S/N | Item | Parameters | Unit | Remark |
1 | Operating voltage | 12 | V | |
2 | Maximum Current | 800 | mA | |
3 | Standby current | ≤100 | mA | |
4 | Frequency range | 840-960 | MHz |
Standard:902-928MHz,custo mized optional |
5 |
Default operating frequency |
Frequency hopping |
MHz | Frequency interval 250KHz |
6 | Channel bandwidth | 250 | KHz | |
7 |
Frequency hopping speed |
≤2 | s | |
8 |
Maximum power output |
31 | dBm | |
9 | Step interval | 1 | dB |
5~30dBm adjustable by software |
10 | Label protocol |
EPC C1G2 /ISO18000-6C |
||
11 |
Radio-frequen cy power rising time |
≤500 | μs | |
12 | Radio-frequency | ≤500 | μs |
power dropping time | ||||
13 |
Adjacent channel power leaking ratio |
≤-40 | dB | ±1CH |
≤-60 | dB | ±2CH | ||
14 |
Frequency stabilizing ratio |
±10 | ppm | -25ºC~+40ºC |
±20 | ppm | -40ºC~+60ºC | ||
15 |
Maximum reading range |
24 | m | 12dBi Antenna |
16 | Multi-Label | >400/s |
Appearance and structure
Size(L*W*H):190×145×30mm
Weight:300g
