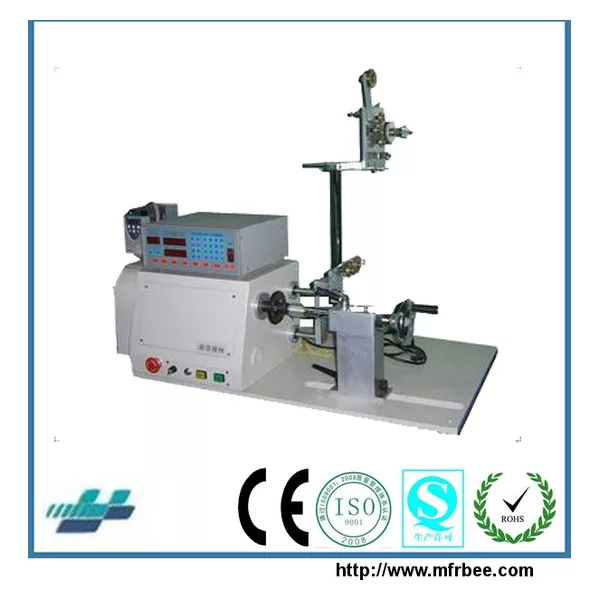

WISDOM CNC Large Torsion Winding Machine TT-CM01D

High-Torsion Series digital coil winding machine is digital Programmable coil winding machine. It's the best choice for Secondary winding, reactive coil, electric power transformer and for big coil of thick wire . Widely used for transformer, inductance ballast, Car Alternator and so on.

Name:Manual Ejector Pins Winding Machine

Model:TT-CM01D

Wire diameter:0.5-3.0mm

Rotating diameter:220mm

Wire arranging itineary:210mm(MAX)

Spindle motor:750W/1500Walternating current motor, variable frequency drive

Power source:AC220V; 50/60HZ

wire spacing: 0.001 - 99.999mm

Rotating speed: 1200 rpm( MAX)

Net weight: 120 KG

Dimensions: 800mm X550 mm X500 mm

The above parameters can be customized according to customer requirements, for more detailed specifications, please contact the Business Department
