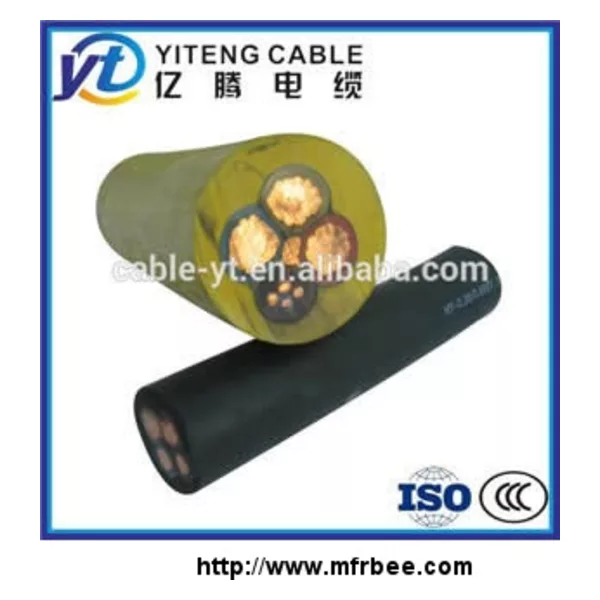

450/750V for mining purpose Flexible rubber sheathed cable

Specifications

General Rubber Sheathed Flexible Cable is suitable for use in electric equipment like daily-use electric appliances, agricultural machinery, engineering machinery, elevating and transport machinery and electric machinery etc.

1. Standard: According to GB5013-85(Equal to IEC245), also can do by standard of ASTM, BS, DIN and AS/NZS or other standards.

2. Rated Voltage: 450/750V; 300/500V; 300/300V

3. Construction: Conductor: Copper; Insulation: Rubber Inner sheath: Rubber

4. No. Of cable cross:1 core(Single core), 2cores(Double cores), 3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core), 5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores). We provide armored type and non-armored type for the cables stated above. Also can do according to the customer's request.

5. Characters: A. Max long-time operating temperature of conductor: 65° C B. Light-duty/Medium-duty/Heavy-duty rubber sheathed flexible cable optional C. Insulation resistance within the insulated cores of the cable converted to 20° C. Section 35mm2 and below should be not less than 50MΩ . KM, 50~150 mm2 not less than 30 MΩ . KM. 185~400 mm2 not less than 20 MΩ . KM.
