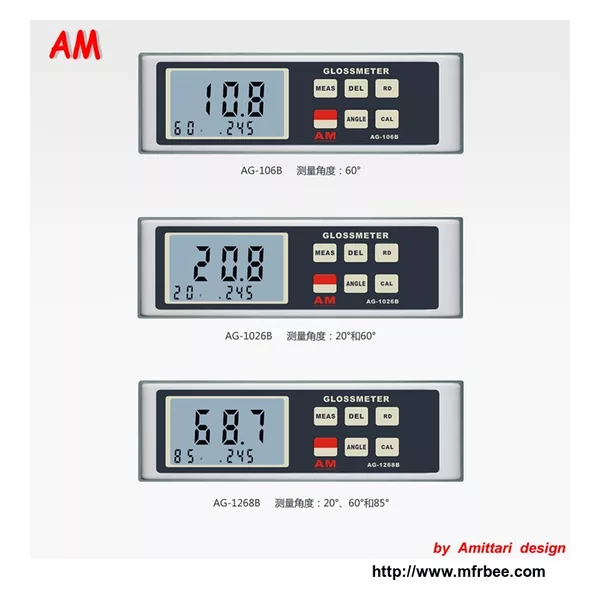

Gloss meter AG-106B/AG-126B/AG-1268B
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- Portable platstic case
- Delivery
- 3-7 days
Specifications
●What is Glossiness?
Gloss is a quantity that expresses the degree of reflection
when light hits a surface. It is dete-mined by comparing the
strength of reflected light from the area be-ing measured with
that from the standard surface.
Product Description
The Glossmeter applies to Ink, paint, paint, paint, decoration materials, wood, marble, granite, polishing brick, tile measurement, paper and other non-metallic materials surface gloss test.
Features
* All intelligent design, rapid measurement.
* With voltage under voltage indication function.
* During operation will be issued a prompt tone.
* Accurate measurement, good repetitiveness.
* Use USB data output and RS-232 data output with connection PC.
* Provide Bluetooth™ data output choice.
●Designed and manufactured in accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584,
ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807.
Parameters
| Measuring Angles | AG-106B:60° | AG-126B:20°, 60° | AG-1268B:20° , 60° ,85° |
| Measuring range | 0.1--200GU | ||
| Stability | ±0.4GU/30Min | ||
| Error | <� ± 1.2GU | ||
| Accuracy | ±1.0 gloss unit ( against reference standard ) | ||
| Resolution | 0.1GU | ||
| Repeatability | ±0.5 GU(0 ... 99.9) | ||
| Measuring area | 7x14mm ellipse | ||
| Data memorized | 254 groups | ||
|
Temperature
|
0~40 °C | ||
| Relative Humidity | No more than 85% | ||
| Size | 136x44x78 mm | ||
| Power supply | Built-in 3.7V lithium Battery(rechargeable) | ||
| Weight | 350g (Including Batteries) |
Accessories
| Standard Accessories | Main unit |
| Carrying case | |
| Operation manual | |
| Holder with calibration standard | |
| Optic cleaning cloth | |
| Power adapter | |
| Optional accessories | USB Data Output |
| RS232 data output | |
| Bluetooth data output |
