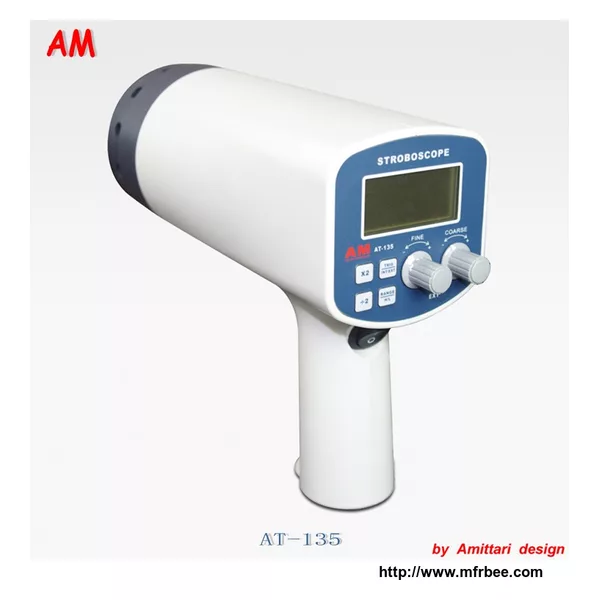

Stroboscope AT-135A/B
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- Portable platstic case
- Delivery
- 3-7 days
Specifications
Product Description
The Stroboscope include AT-135A and AT-135B two model. Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern, Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object .
Product Feature
* Automatic stop flashing to save electricity and improve flash tube lifetime.
* Internal/external triggering fast conversion; x2 and ÷2 button for fast adjustment.
* Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.
* Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution.
* Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology,
it can measure the rotative velocity without contacting the object.
Product Parameter
| Display | 10mm LCD display with backlight |
| Resolution | A Type 0.1FPM ( Below 1000 FPM ) |
| B Type 1FPM ( Above 1000 FPM ) | |
| Measuring Range | A Type 50~12000FPM |
| B Type 50~40000FPM | |
| Measuring Accuracy | ± ( 0.05%+1nd ) |
| Sampling Time | 0.3 seconds |
| Triggering Mode | Internal Triggering / External Triggering |
| Environment Temperature | 0°C~40°C |
| Relative Humidity | ＜85% ( RH ) |
| Power Supply | Ac220 ±10%v, 2A, 50Hz ; AC110 ±10%v, 2A,50Hz |
| Size | 210x85x185 mm |
| Weight | 660g ( Not including Batteries ) |
Product Accessories
| Standard Accessories | Host ( 1pc ) |
| Manual Book ( 1pc ) | |
| Carrying Case (1pc) |
| Optional Accessories | Stroboscope Lamp |
| Rechargeable Battery |
