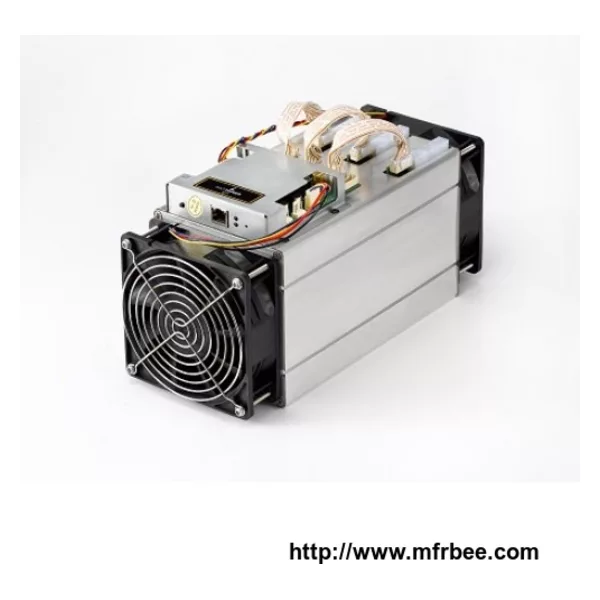

ANTMINER S7

Product Description
1. Hash Rate: 4.86 TH/s ±5%
2. Power Consumption: 1210 W (at the wall, with APW3, 93% efficiency, 25C ambient temp)
3. Power Efficiency: 0.25 J/GH (at the wall, with APW3, 93% efficiency, 25°C ambient temp)
4. Rated Voltage: 12V+5%, should not be less than 12.0V
5. Chip quantity per unit: 162x BM1385
6. Dimensions: 301mm(L)*123mm(W)*155mm(H)
7. Cooling: 2x 12038 fan
8. Operating Temperature: 0 °C to 40 °C
9. Network Connection: Ethernet
Notes:
1. Power consumption figures will vary with your PSU’s efficiency, the ambient operating temperature and the accuracy of the power meter.
2. PSU: A power supply unit is not included, and you will need to provide an ATX PSU. There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 are required. Do not connect more than one PSU to the same hashing board!
3. Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. If you use different PSU for hash boards and control board, please make sure to power the hash boards first and the control board only after the hash boards have been powered.
