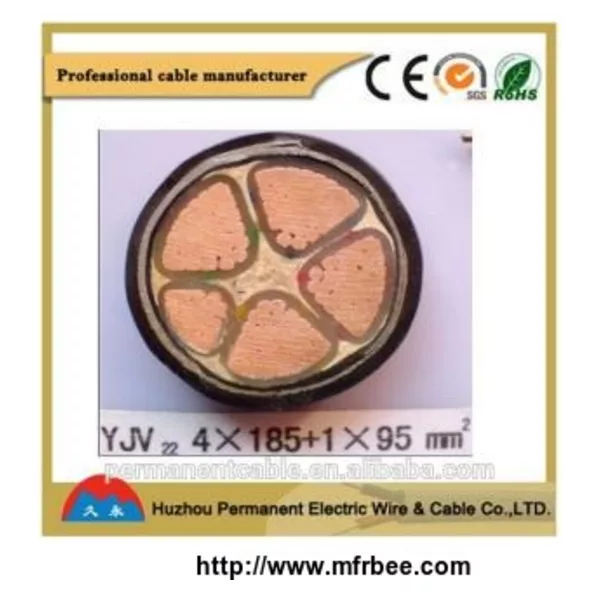

PVC Steel Tape Armored Power Cable

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

1. Cu/Al/XLPE/SWA/PVC sheath Electric power cable

For laying buildings,inducts , kin tunnels,direct in ground and under water

2.nominal cross-sectional areas:

1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2

3.production range:

single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2

4.operating characteristics:

Rated power-frequency voltage u0/u:0.6/1 KV

Max permissible continuous operating temperature of conductor 70

Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration):

cross-section of conductor 300 mm2

The anbient temperature under installations should not be below 0

The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter

http://www.permantcable.com

Country: Afghanistan
Business Type:
Market:
Founded Year:
Address:Add: Yangxi industrial park, Zhili Town, Huzhou City, Zhejiang China.
Contact:Yeli Wang Yeli Wang

more images of PVC Steel Tape Armored Power Cable
