Drill Bit
Product Quick Detail
- Minimum Order
- 5
- Place Of Origin
- China
- Packaging
- wooden box or Container
- Delivery
- 15 Days
Specifications

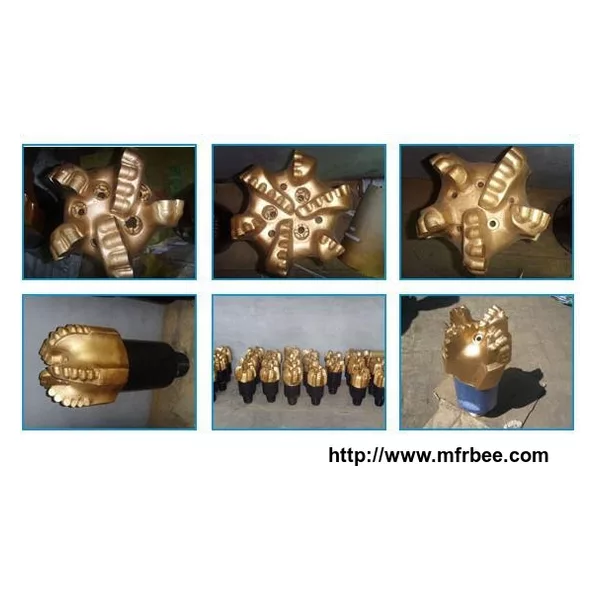

BIT Product Introduction
A:Condition:100% new
B:size:12 1/4"=311mm PDC BIT
C:IADC:M1963
D:Number of blade:6
F:Number of nozzle:6
G:Connection:6 5/8"API Reg
L:Feature:(1).Deep blade and long parabolic configuration, ensure optimal botom hole flow pattern and anti-balling.(2).Arc blade and spiral gauge enhance the cutting capability and the drilling stablization.(3)Anti-whirl design improves ROP and enhances the drilling stability.(4)Medial cutter density design is suitable for soft to medial formations.
| Size & parameter for choosing directly | ||||||
| ² | Size | PAL Whorl | PAL Whorl | Rotation speed | Weight on bit | Diameter |
| ² | (in) | specification | Rate(gpm) | (rpm) | (Ibs) | tolerance(mm) |
| ² | 6” | 3 1/2 API Reg | 200-350 | 80-380 | 2000-15000 | +0, -0.38 |
| ² | 8 1/2” | 4 1/2 API Reg | 300-500 | 60-350 | 3000-11000 | +0, -0.51 |
| ² | 9 1/2” | 6 5/8 API Reg | 400-600 | 60-350 | 4000-20000 | +0, -0.76 |
| ² | 12 1/4” | 6 5/8 API Reg | 550-850 | 60-350 | 4000-14000 | +0, -0.76 |
| ² | 17 1/2” | 7 1/2 API Reg | 550-850 | 60-240 | 5000-24000 | +0, -1.14 |
| ² | Others | According to your requirements, we can design and produce all above specification(All size 3 1/2”--26”) |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Middle East,Americas,Africa
- Founded Year:2010
- Address:6F.,Satellite Building,NO.63,Zhichun Road, Haidian District
- Contact:SHICHAO LU
