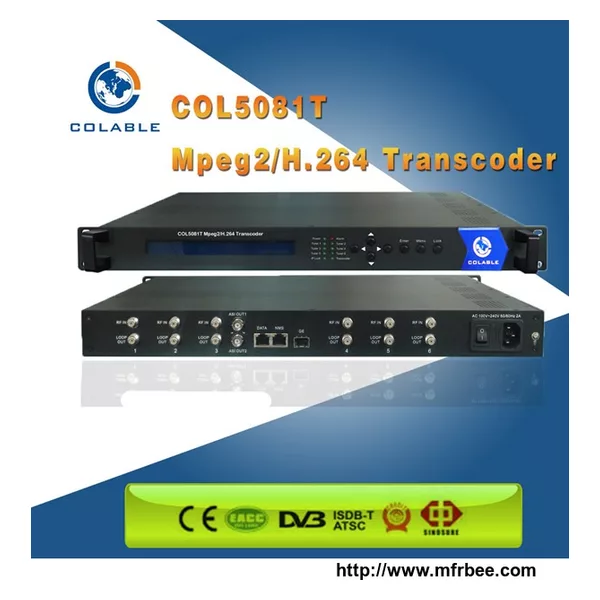

COL5081T Mpeg2/H.264 Transcoder

Outline



COL5081T is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 6 tuner inputs to receive channels directly from satellite, or ASI /IP inputs to receive digital channels. After trans-coding, it outputs MPTS & SPTS through the DATA port or ASI port.

This trans-coder supports advanced re-multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.

It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.





Features

Support 8 * IP (SPTS/MPTS UDP) input plus 6 tuners input

- Or 8 * IP (SPTS/MPTS UDP) input plus 6 ASI input

Support 8*SPTS & 1*MPTS (UDP) output and 1 ASI output

Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any

Audio Trans-coding: AAC and MPEG-2 any-to-any or pass-through

Support maximal 8 SD or 4 HD programs trans-coding

Support maximal 8 channel audio trans-coding

Supporting 1920x1080I, 1280x720P, 720x576i, and 720x480i resolutions

Supporting CBR and VBR rate control

Advanced re-multiplexing

LCD & Key board local control; web NMS management
