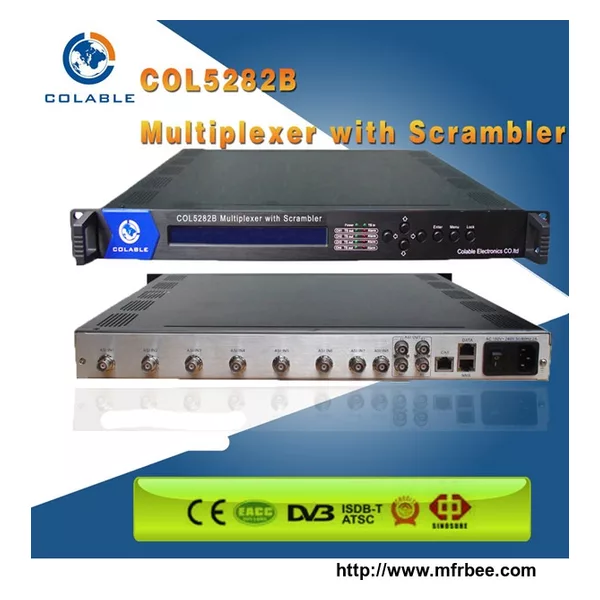

COL5282B Multiplexer with scrambler

COL5282B Multiplexer with scrambler



Outline

Mux-scrambler is the latest demodulation, multiplexing and scrambling device for digital TV broadcasting head-end system. This mux-scrambler has maximum 8 channels input, while it has 2 groups of ASI output and 2 corresponding IP output (share one megabits DATA port). It can multiplex and encrypt the FTA stream to output. In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.





Features

Fully complies with ISO13818 and EN300468 standard

Integrated demodulating, multiplexing and scrambling functions

8 input interface

MPEG-2 and mpeg-4 transport stream re-multiplexing

SPTS and MPTS code stream multiplexing

Supports accurate PCR and PID re-mapping

Two groups( each group has 2 channels) separate TS output

Two channels IP output(the mirrors of the 2 ASI outputs)

Supports PSI/SI editing

Fully supports DVB general scrambling system (ETR289)

Complies with DVB common scrambling algorithm, supports the simulcrypt scrambling mode, compatible with multiple CA system

Simultaneously supports 4 different CAS simulcrypt

Supports CAS remote connection scrambling

Supports huge buffer memory and resists unexpected code stream

Supports multiplexing the same program to all the output channels

Alarming function

Supports network remote upgrading

Full-size LCD display and NMS operation
