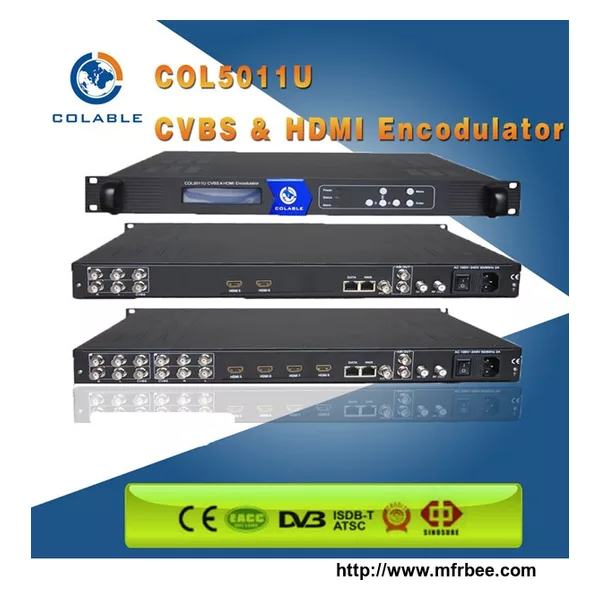

COL5011U 4/8CH CVBS HDMI Encodulator

COL5011U 4/8CH HDMI Encodulator



Outline

This 4/8CH HDMI Encodulator is a professional HD and SD audio & video encoding and multiplexing device with powerful functionality. It has 4/8 channel HDMI input interfaces, supporting MPEG4AVC/H.264 High Profile code format. This device can simultaneously encode 4/8 channel HD programs; moreover, it has an ASI input and can multiplex the input TS with the 4/8 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.



Main Features

4/8×HDMI HD/SD video inputs

1× ASI input interface

Low Latency Encoding

Lower Resolutions Output

Support MPEG4AVC/H.264 igh Profile code format

PSI/SI editing and inserting

PID remapping and passthrough

Support CBR/VBR video bitrate mode

Support 1080i,1080P,720P,576i,480i video format

Outputs multiplexed MPST ASI

4*DVB-C RF output

Support IP out(UDP/RTP/RTSP protocol,SPTS)

Support IP null packet filter

Support Web monitoring

Support SNMP Ethernet software upgrade

LCD display
