8 channel HDMI SDI CVBS input MPEG-2/H.264 encoder
Product Quick Detail
- FOB Price
- USD $2,500.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- 1set each box
- Delivery
- 5 Days
Specifications
Outline

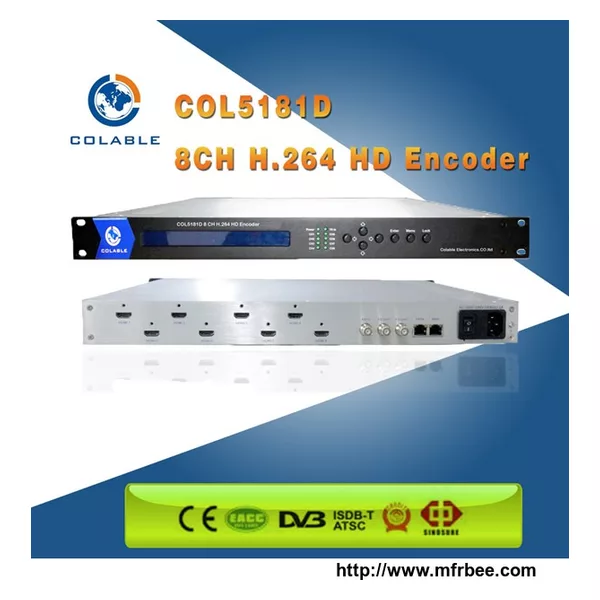

The COL5181D 8 CH H.264 HD encoder is our newest professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 HDMI channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format and 1 ASI input. It can multiplex the ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI information. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Features
Support 8 HDMI channels input & 1 ASI Input
Support H.264/AVC high profile level 4.0 video encoding
Support MPEG1 Layer 2 (HE-AAC (V2) or LC-AAC optional) audio encoding
Support PSI/SI editing and inserting
Support VBR or CBR video bitrate mode
Support 720P, 1080I, 1080P HD video format
Support ASI output MPTS or 8 SPTS
Support IP Output MPTS and 8 SPTS
Support IP null packet filter
Support PID filter and transparent transport
Real-time output bit-rate monitoring
Update device through NMS port
Support LCD / keyboard operating, and network management (SNMP)
The COL5181D 8 CH H.264 HD encoder is our newest professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 HDMI channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format and 1 ASI input. It can multiplex the ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI information. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Features
Support 8 HDMI channels input & 1 ASI Input
Support H.264/AVC high profile level 4.0 video encoding
Support MPEG1 Layer 2 (HE-AAC (V2) or LC-AAC optional) audio encoding
Support PSI/SI editing and inserting
Support VBR or CBR video bitrate mode
Support 720P, 1080I, 1080P HD video format
Support ASI output MPTS or 8 SPTS
Support IP Output MPTS and 8 SPTS
Support IP null packet filter
Support PID filter and transparent transport
Real-time output bit-rate monitoring
Update device through NMS port
Support LCD / keyboard operating, and network management (SNMP)
