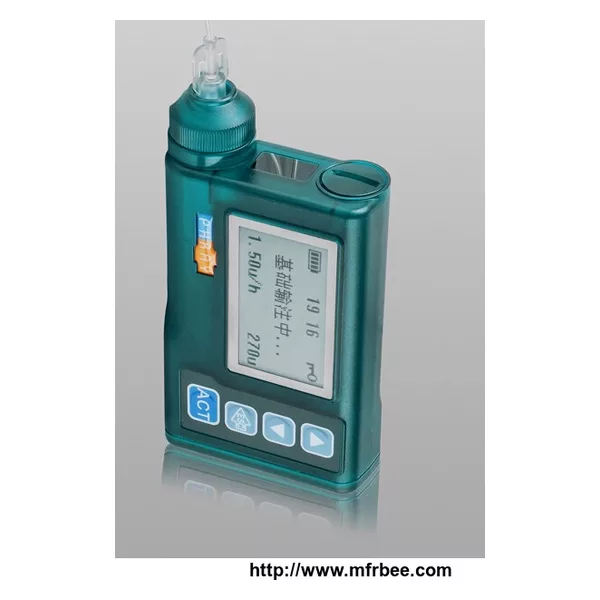

Insulin pump

l List menu and big screen

l 24/48 basal rates selectable

l Powered by 1*AAA Alkaline battery

l Available to use all kinds of infusion sets

l Auto-reset for screw and auto-calculate for residual insulin

Intellectualized memory function for bolus settings

Specification

1. Size: 79*52*20mm

2. Weight: 58g

3. Basal rate segment: 24/48 segments for optional.

4. Infusion frequency: 0~60 times/hour

5. Minimal dose: 0.05u (1u means 0.01ml)

6. Infusion type: basal rate;Temporary basal rate;Bolus;Square wave bolus.

7. Basal rate setting range: 0~5u

8. Basal rate infusion error range: ±5%

9. Temporary basal rate setting range: speed: 0~200%, time: 0~24 hours.

10. Bolus setting range: Normally 0~40u, max setting range: 0~85u

11. Bolus infusion error range: ±3%

12. Bolus modes: Normal bolus, bolus before 3 meals.

13. Square wave bolus setting range: Normally 2~40u, max setting range: 2~85u, time:0~240 minutes.

14. Max daily dose: 200u

15. Screw rewind: Motor drive rewind automatically

16. Alarm: Ring

17. Alarm situation:

A: Meal alarm: 30 minutes after bolus infusion

B: Low-Voltage alarm: Voltage lower than 1.2v

C: No liquid alarm: Liquid less than 20u.

D: No infusion alarm: No liquid left.

E: Liquid blocking alarm: Blocking before 6u

18. CPU: Dual CPU

19. Reservoir volume: 305u

20. Infusion tube interface: Standard Luer interface

21. Battery type: 1*AAA battery

22. Using condition: Temperature: +5℃~+40℃;

23. Relative humidity:20%~90%;

24.Atmospheric pressure:700hPa~1060hPa.

25. Store condition:Please store it in ventilated rooms without any corrosive gases, temperature is from -20℃~55℃；

26. Relative humidity:no more than 80%.

27. IP grade: IPX8
