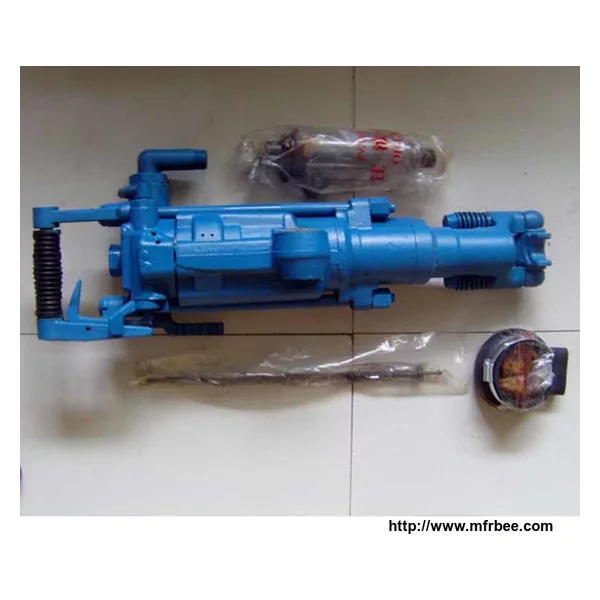

YT24 Rock Drill
Product Quick Detail
- FOB Price
- USD $200.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- 1 pc per package
- Delivery
- 15 Days
Specifications
YT24 rock drill hand held rock drill can be used to digging dry or wet by horizontal holes,vertical holes or angling holes on medium-hard rock or hard rock. Widely used in mines,railway,irrigation and quarry to drill holes and for the second digging holes.
Technical Parameters
| Type | YT24 | |
| Weight(kg) | 24 | |
| Air consumption | ≤67 | |
| (L/s) | ||
| Bore Dia. (mm) | Φ34-42 | |
| Drilling depth(m) | 5 | |
| Shank(mm) | 22×108 | |
| Air pressure(MPa) | 0.63 | |
| Suitable air-legs | FT140B | FT140BD |
| Height(kg) | 15.6 | 13.9 |
| Length(mm) | 1687 | 1400 |
| Feed length (mm) | 1250 | 965 |
