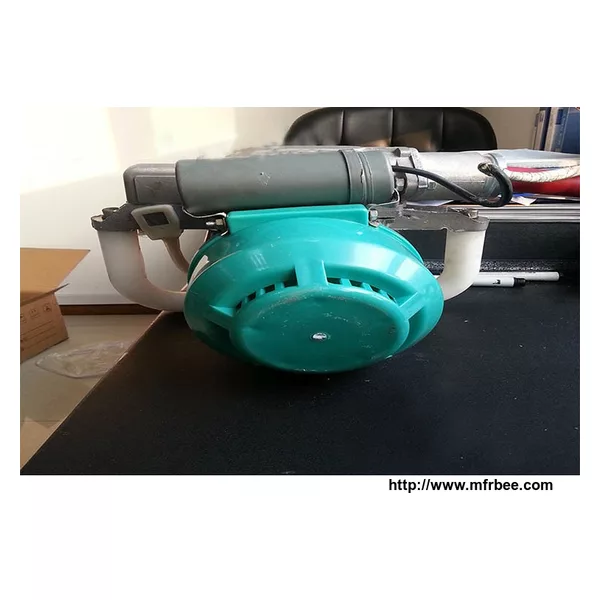

This is a hand-held drill that can be used in in various mines such coal mine, marble mine, metal mine and rock layer. With the explosion-proof structure it can be safely used for mine where methane and coal dust explosion. The water injection device can reduce dust. The machine is matched with the coal drill pipe and coal bit ,any demand please feel free to let me know, will get back to you soon .
Technical Parameters
Model
Item |
ZM12(A) |
ZM12S |
ZMS12Q |
ZM15D |
ZM15Q |
ZM15S |
ZMS15Q |
Spindle speed
(r/min) |
520 |
425
|
520 | 640 | 520 | 425 | 520 |
torque shaft | 22 N.m | 25.4 N.m | 22 N.m | 22.4 N.m | 27.5 N.m | 33 N.m | 27.5 N.m |
Borehole Dia | Φ ( 38 ~ 45 mm ) | ||||||
Rated Power | 1.2KW | 1.5KW | |||||
rated voltage | 127V | ||||||
HZ | 50 | ||||||
Phase N | 3 | ||||||
rated current | 9A | 11.2A | |||||
efficiency | 76% | ||||||
process | S 2 -30min(half an hour intermittent work) | ||||||
Weight (kg) | 15 | 15.4 | 15.3 | 15.6 | 15.8 | 16 | 16 |
