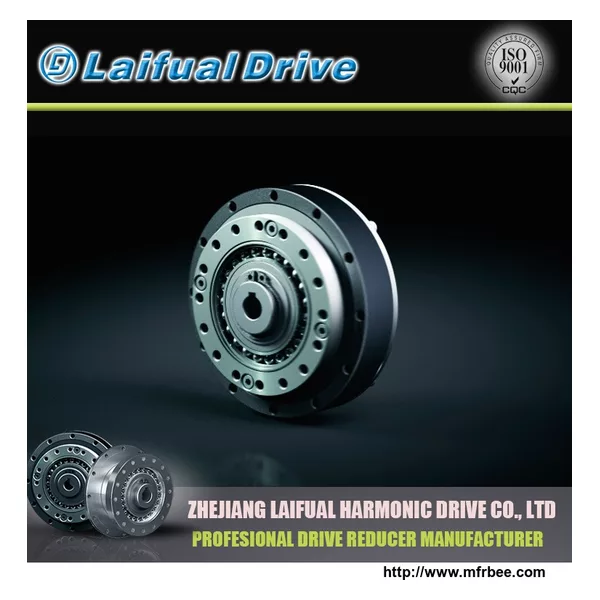

Harmonic Drive
Product Quick Detail
- FOB Price
- USD $450.00 / Piece
- Minimum Order
- 1
- Packaging
- 1 pc each carton
- Delivery
- 20 Days
Specifications
Main Features :
1.High Precision Gear
Many teeth in the position of the two 180-degree symmetry Joggle.Gear tooth pitch error and the cumulative influence of pitch error on rotation accuracy is average. Very high position accuracy and running accuracy can be obtained.
2.High Ratio
Single harmonic drive gear ratio of up to i=30 to 500. Simple structure, three basic components on the shaft can be achieved with high reduction ratios.
3.High Load Capacity
Harmonic drive, tooth and meshing of the teeth is the contact, together with colleagues more meshing number of teeth, thus the load per unit area is small. Higher load capacity than other forms of transmission.
4.Small Volume and Light Weight
5.High Transmission Efficiency and Long Service Life
6.Stable Transmission and Low Noise
- Country: China (Mainland)
- Business Type:
- Market:Global
- Founded Year:
- Address:浙江省嵊州市甘霖工业园区
- Contact:Maggie Tao
