High speed UV variable data printer

●Applicable industry

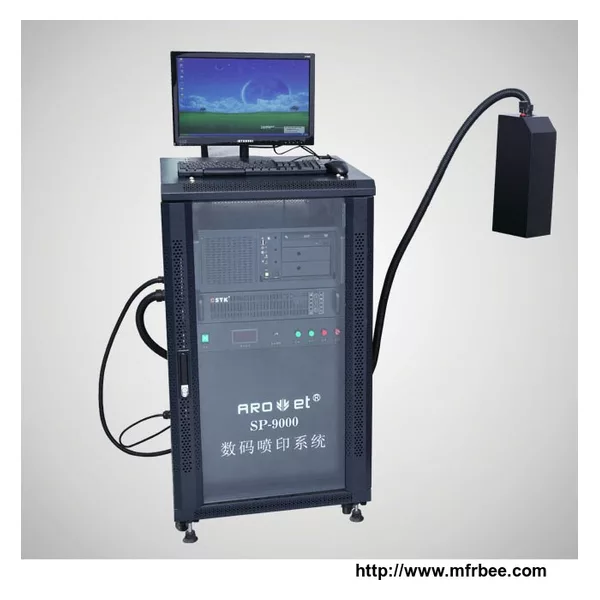

SP - 9000 digital printing system, widely used in documents, bills anti-counterfeiting, adhesive labels, CARDS, supervision code applications such as the best choice. It can be configured in a variety of rotary printing machine, a single paper fixture, roll paper go on fixture and all kinds of online and offline devices, is the ideal of prepress and post-press equipment matching function expansion device.

●Function
It can print on paper, plastic, metal, glass, ceramics, etc. such as: coated paper, thermal paper, aluminum foil paper, PET, PVC, PP, PE, tinplate, tinsel, etc.

●Detailed parameters
Print heads: GENS
Print speed: 150 m/min
Print precision: 600 DPI
Print precision (DPI) : * 600 DPI arbitrary precision
Maximum print width: 54 MM (perfect support CR - 80 standard)
Print speed highest degree: 150 m/min
The biggest print unit: eight
Characteristics of nozzle: support grey level 7
Distance between material: less than 4 MM
Nozzle drops (minimum) : 7 PL
Nozzle frequency: single point 30 KHz, gray level 20 KHz
Nozzle maintenance: automatic cleaning
Print content: one-dimensional bar codes, two-dimensional bar code, lattice code, anti-counterfeiting code, text, images, databases, serial number (less than 3 MM perfect support)
Print mode: roll material or leaflet
Print color: monochrome spray is printed or spray color
Ink type: UV, water-based, oily
