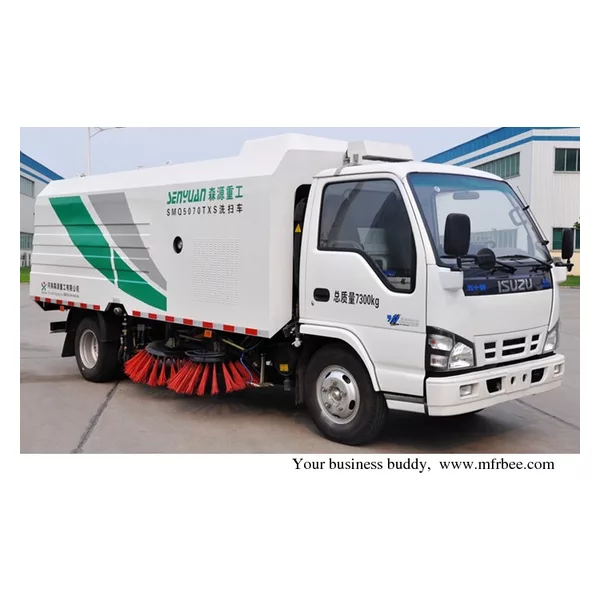

Senyuan SMQ5070TXS Cleaning Sweeper Truck

Product Quick Detail

Material
Stainless steel plate
Leaf Spring Number
8 / 6+5
Volume(M³)
Water Tank 4.5m³ / Dustbin 2.5 m³
Tyre Quantity
6
Axis Quantity
2
Tyre Size
7.00-16 14PR/7.00R-16 14PR
Rated Weight(Kg)
2140Kg
Approach/Departure Angle(°)
24°/ 18°
Curb Weight(Kg)
5030Kg
Total Mass(Kg)
7300Kg
Front/Rear Overhang(Mm)
1015mm/1485mm
Wheel Base(Mm)
3815mm
Container(L×W×H)(Mm)
4600mm×2000mm×1600mm
Front /Rear Track Base(Mm)
1504mm/1425mm
Overall Dimension(L×W×H)(Mm)
6320mm×2010mm×2475mm
Cab Configuration
Air conditioner
Underpan Type
ISUZU QL 1070A1KAY
Underpan Standard
GB18352.3-2005 China 4th Emission
Vehicle Type/Vehicle Name
SMQ5070TXS Cleaning Sweeper Truck
Shipping Type
RORO/40 HQ container
FOB Price
Negotiable
Shipping Port
Qingdao China, Tianjin China
MOQ
1
Payment Term
T / T ; L / C
Alarm Device
High/low water level alarm
Cleaning Width(M)
3
Washing Width(M)
3.3
Water Pump Type
NP25/70-100
Water Pump Pressure(MPa)
10 MPa
Water Pump Flow L/Min
70L/min
Full Container Continuous Working Hours
1.5 hours
Working Speed(Km/H)
3~20km/h
Container Dump Dip(°)
62°
Max Speed(Km/H)
100Km/h
Hydraulic System Pressure(MPa)
14Mpa
Type
4KH1-TCG40
Power(KW)
88KW
Max Torque N.M
280N.m
Displacement
2999cc
Manufacturer
QINGLING ISUZU (CHONG QING) ENGINE CO.,LTD
Type
JX493G3
Rated Power Kw(R/Min)
57/3600
Packaging
carton box/need no packaging if use RORO
Delivery
30 Days

1. ISUZU underpan were used in this truck and its diesel engine reachs China 4th emissions standard.

2. arrangement form:middle 4 sweep plates+middle V type water spray stand(left/right sprayer nozzles may be independent controled )+suction nozzles .

3. Working mode: ①plates sweeping+ suction nozzles,realizing pavement cleaning and dust absorption.②V type high pressure sprayer nozzles + suction nozzles,realizing pavement cleaning and dust absorption.③plates sweeping + V type high pressure sprayer nozzles + suction nozzles,realizing pavement cleaning and dust absorption.

4. This truck may be served as sweeping vehicle, road edge cleaning vehicle, washing and cleaning vehicle, water spraying vehilce, spray and aspirating vehilce.It has functions of washing façade of curb stones,upper plane,washing in low pressure,spray and aspirating etc.

5.It has intelligent operation control system,if work starting or stoping,one key may control working device such as suction nozzle up or down,sweep plates folding up or laying down, left/right sprayer nozzles taking in or putting out, making operate easier.

6.High pressure cleaning spray bar is made up of V type sprayer nozzle(installed in suction nozzle)and inner spray bar of suction nozzle.While you are working ,terrain clearance of spray bar was fixed,angle of water spray may be adjusted according to road conditon, angle will not change if truck load changs, so it may realize stable and best cleaning effect, left/right spray bars were driven by cylinder.

7.Emission device of sewer valve may separate sewage and sludge effectively,you may discharge sewage independently according to sewage conditon of dustbin at any time.

8.Sludge cleaning device is of multi-angle and single-point,it may apply to cleaning up of street grind sludge and garbage corner.

9.There are low pressure and large flow jetter in the dustbin,it may wash dustbin quickly and dustbin was dumped by two oil cylinder.

10.Automatic adjusted technology of road distance by pneumatic buffered sweeper were used to make sure a fixed value of contact force between sweeper and ground, sweeper may be compensated automatically after wearing out and manual adjustment was not needed ,therefore, it is unacted on cleaning efficiency.

11.Water tank and sewage dustbin were made of whole single layer SUS304 stainless steel,make containers anti-rusting.

12. You may use large capacity water to enhance pressing dust by self-absorption while conventional sweeping.

13.Front water spray system were installed in the front of truck,the front spray nozzle have high wash pressure and may wash 6 lanes one time(side wash device needed),the spray nozzle may be adujsted 360°up,down,left and right.

14.Pneumatic cleaning pipe and defroser device were set up in this truck.

15.This truck has following safety alarm device:water tank low water level ,sewage dustbin high water level,working reminder,vice engine water temperature,oil pressure,back up reminder, hydraulic oil leak alarm,video monitoring etc.

16.Headlamps were equipped on the left / right sweep plates,which may monitor working conditon of the sweep plates easily while it working at night.

17.Both left/right sweep plates and spray pipe system have following functions of obstacle avoiding automaticlly,protect and reset.

18.You may centralized control electric,hydraulic and pneumatic device,realizing various functions only sit in the cab as intelligent control system were programming by PLC
