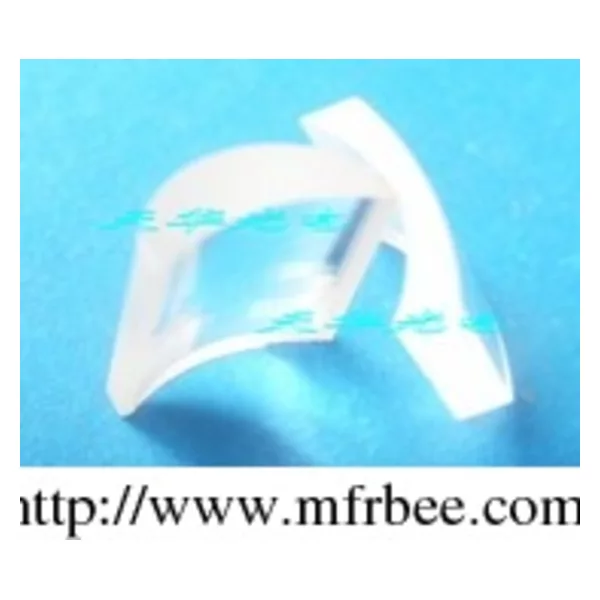

Meniscus lenses

Place Of Origin
changchun
Packaging
safety carton package
Delivery
15 Days

Meniscus lenses are convex-concave lenses. They have one outward curved face and one inward-curved face. If the outward curve is sharper than the inward curve, the lens has a positive focal length and acts as a magnifier.Positive meniscus lenses are designed to minimize spherical aberration and are usually used in small focus numerical applications, meniscus lenses can also improve image quality and reduce spot size, without an undue increase in the aberrations. Negative Meniscus lenses are the best lens form where one conjugates is relatively far from the lens or where both conjugates are the same size of the lens. They are commonly used in beam expanding applications where minimal spherical aberration is desired.

Material:BK7 and others

Focal length tolerance:±2% ~ ±0.5%

Diameter tolerance:±0.2mm ~ ±0.05mm

Center Thickness:±0.2mm ~ ±0.03mm

Surface quality:60/40 ~ 10/5

Surface accuracy:λ/4@633nm

Centration:3'~1'

Bevelling:< 0.25mm x 45°

We will also do according to the specifications such as size, structure, material, surface treatment and so on that the customers required. We supply them with good quality and low price. Please contact us to know details. Besides, there are a large volume of optical components in various shapes and sizes in stock to facilitate quick deliveries.
