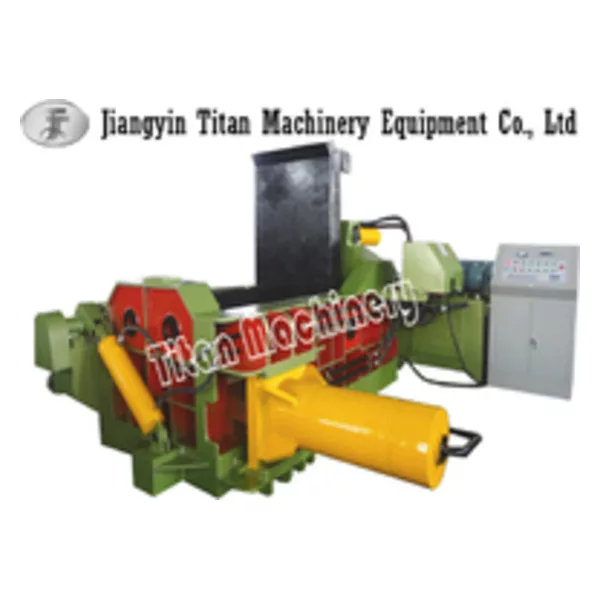

250 tons hydraulic scrap metal baler machine

Place of origin：Jiangsu, China

Brand name: Shengbo

Model number: Y81-2500

Machine weight: 20 tons

Rated power: 22KW *2

2， application:

Y81 series hydraulic metal balers (baling machine/compressor) are mainly used in steel manufacture, recycling companies, ferrous & non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into required shapes (cuboid, cylinder, octagon etc.), so as to reduce the transportation cost, to increase the speed of furnace feeding and reduce the furnace loss.

3, Features:

a) Hydraulic drive system, manual valve control or PLC control.

b) Bale-discharging method: "turn-out"; "push-out" (forward or side push); manual discharging.

c) No footing bolts needed in installation; diesel engine can be equipped for power.

d) Various types to choose with baling force from 63 to 400 tons; productivity from 4 to 40 tons per shift (8 hours standard)

4, Technical parameters:

Nominal force:	2500 (kn)
Bale size:	500*500 (mm)
Bale density:	≥ 2 t/m3
Bale discharging:	Turn over & pust out optional
Stuffing room(L*W*H):	2400*1400*900 (mm)
Production(per 8 hours):	36-40 tons
Cycle time:	120 (s) single cycle
Power:	22 KW *2
Nominal pressure:	21 Mpa
Operation:	Manual/Automatic

5, ISO, CE approved

6, Warranty and after-sale service:

1) 12 months quality guarantee after installation

2) life long technical support and spare parts supply

3) 24 hours on line customer service
