Qualcomm MDM9225 support 32GB sim card 4G router

Qualcomm MDM9225 support 32GB sim card 4G router

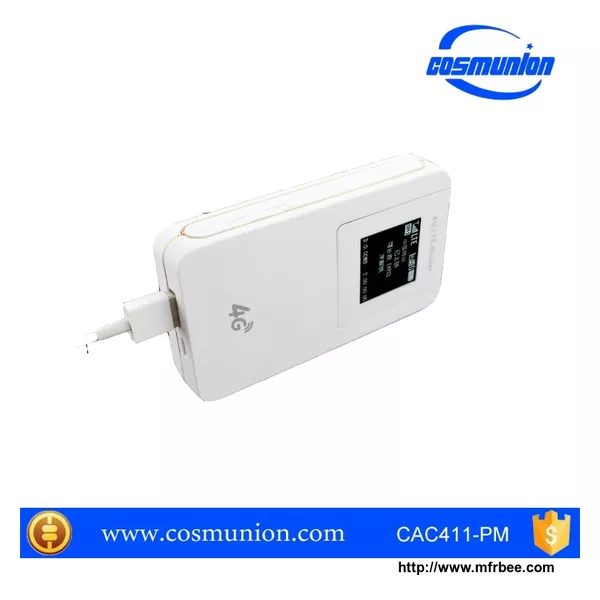

Model Number: CAC411-PM

Main Fetures:

*Powerfull Qualcomm MDM9225 chipset
*FDD LTE Cat4 downlink as high as 150Mbps
*Total 6modes and 17bands,Supports TD-LTE 1.9(B39) 2.3(B40) 2.6(B38) GHz 2.6(B41) GHz
FDD LTE B1(2100MHz) B3(1800MHz) B7(2600MHz)and compatable to UMTS,EVDOCDMA 1X and GSM
*ROM+RAM: NandFlash 2Gb+DDR SDRAM 1Gb
*With 3000mAh battery rechargable(4620mAh is optional)
*Connect to the fastest network available (LTE/Dual-Carrier HSPA+).
*Share 4G LTE with 10 Wi-Fi enabled devices simultaneously.
*Enable Quick and comprehensive setup.
*Moniotr your wifi speed and condition with clear LED screen.
*Mutiple Internet access methods including wireless, USB connection modes
which enable your desktop, Laptop or any devices share internet.
*Convenient hotspot management surface
*No need to install any driver when you start enjoy wifi
*Support 32G TF-card
*Supports WPS press button set up

Specifications

TD-LTE 3GPP/3GPP2 Release9,Category 3,up to 68M DL and 17M bps
FDD LTE 3GPP/3GPP2 Release9,Category4,up to 150M DL and 50M bps
TD-HSPA+ 3GPP/3GPP2 Release7,up to 4.2Mbps DL and 2.2Mbps UL
DC-HPSA+ 3GPP/3GPP2 Release8, up to 42Mbps ,category 24, 5.76M bps UL
HPSA+ 3GPP/3GPP2 Release7, up to 14.4Mbps ,category 10,5.76M bps UL
HSPA 3GPP/3GPP2 Release6, up to 7.2M bps DL,category 7/8,5.76M bps UL
UMTS 3GPP Release4, up to 384 Kbps DL and UL
EDGE 3GPP Release4, Multislot class 12, up to 237 Kbps
GPRS 3GPP Release4, Multislot class 10, up to 85.6Kbps
TD-LTE 1.9(B39) 2.3(B40) 2.6(B38) GHz 2.6(B41) GHz
FDD LTE B1(2100MHz) B3(1800MHz) B7(2600MHz)
TD-SCDMA 2.0(B34) 1.9(B39) GHz
UMTS B1(2100MHz)B2B5B8(900MHz)
EVDOCDMA 1X BC0(824-849MHz,869-894MHz)
GSM B2(1900MHz)/B3(1800MHz)/B5(850MHz)/B8(900MHz)
System Windows XP SP2/SP3, Windows Vista SP1/SP2, Windows 7/8;Mac OS X 10.5; 10.6; 10.7;10.8

TD-LTE support5MHz/10MHz/15MHz/20MHz
FDD LTE support5MHz/10MHz/15MHz/20MHz
TD-LTE Power Class 3
FDD LTE Power Class 3
WCDMA Power Class 3
GPRS 850/900MHz Power Class 4
GPRS 1800/1900MHz Power Class 1
EDGE 850/900MHz Power Class E2
EDGE 1800/1900MHz Power Class E2
CDMA1x/EVDO 800MHz

Main Antenna of 3G/LTE inbuilt
Affiliate Antenna of 3G/LTE inbuilt
Main Antenna of WIFI inbuilt
Affiliate Antenna of WIFI inbuilt

TD-LTE band frequencies Switch support
Uplink MIMO transmission mode Support single antenna port(antenna port 0)transmission
Downlink MIMO transmission mode Mode1)Support single-antenna transmission
Mode 2) downlink two antenna transmit diversity
Mode 3)downlink two antenna open-loop spatial multiplexing
Mode 4)downlink two antenna closed-loop spatial multiplexing
Mode 7) downstream single-stream beamforming
Interoperability
Roaming between TD-LTE and FDD LTE support
Display Screen
OLED OLED color1.46',resolution 128*128,
Function keys
Power on Yes
Reset Yes
WIFI no
WPS button Yes
Ethernet no
USB-A-SMA Female USB-A X 1
Peripheral Interface
mirco-USB support USB2.0HS,
Normal USB Used for surfing internet, charging, debuging and downloading etc
SIM/USIM Card Slot yes,6PIN,3GPP 31.101 and 31.102;SIM X 1,Micro SIM X 1
TFlash Card Slot Yes
main antenna port of 3G/LTE no
affiliate antenna port of 3G/LTE no
Hardware Platform
ROM+RAM NandFlash 2Gb+DDR SDRAM 1Gb
Chipset Qualcomm MDM9215
Battery Parameters&Accessories
Battery Type Built-in lithium polymer battery
voltage rating 3.7V~4.2V
battery capacity 4620mAh or 3000mAh (optional)
work time Up to 16 hours(LTE),24 hours(UMTS)
stand-by time More than 5*24 hours
adapter 5V/1A(optional)
usb cable 1
Gift box 1
Quick User Manual 1
Dimensions 109mm*60mm*20mm
product weight 125g including battery
Packaging & Shipping

Shipping method and freight cost :We can use wholesale shipment, or we have long term business relationship shipping agent help you, In normal use DHL, Fedex, Aramex, postal.

Freight costs on basis on your destination. but we can choice the best price& most safe method for you,

Payment:

West Union, Secure payment via visa card, Paypal for Sample and TT for mass production.

Bank transfer for wholesale.

Lead Time:

In gernal, 3 working days for sample after we receive payment

mass production lead time is basis on specific quantity.

Delivery Time:

EMS is about 7-8 days.

DHL, Fedex, TNT, Aramex is usullay 3~6 days.

Postal is about 1 month working days.
