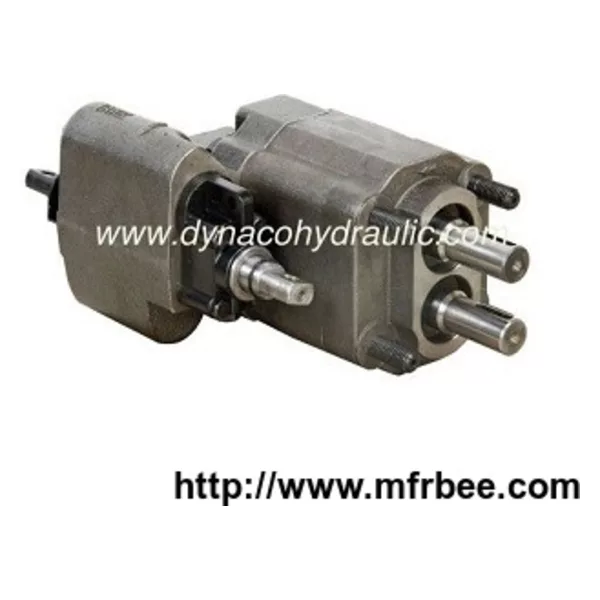

C101 DUMP PUMP
Product Quick Detail
- FOB Price
- USD $135.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- for export
- Delivery
- 10 Days
Specifications
Commercial Intertech type C101/102 replacement Dump Pumps are known for their ruggedness, reliability and interchangeability. Available in both the DYNACO C101 Remote Mount and the C102 Direct Mount configurations, these pumps offer cast iron construction. Please view our attachment DYNACO C101 C102 DUMP PUMP.pdf Technical Product Catalog for detail.
Additional information about DYNACO C101 dump pump:
- Choose from multiple mounting types
- Speeds up to 2400 rpm
- Pressures up to 2500 psi (172 bar)
- Output flows up to 39 & 48 gpm (147.6 & 185.4 lpm), @ 1800 rpm
- Air remote operators are available
- A relief valve protects the pump & cylinder
- All units are supplied with factory-set 2000 psi (137 bar) relief valves
|
Model No. |
Gear Width |
GMP @ 1800RPM |
LMP @ 1800RPM |
Pressure (psi) |
Max Speed (rpm) |
Input Power (kw) |
Shift Option |
Rotation |
|---|---|---|---|---|---|---|---|---|
| DC101D-20-RMS | 2" | 39 | 147 | 2500 | 2400 | 75 | Manual | CW/CCW |
| DC101D-25-RMS | 2 1/2" | 48 | 180.5 | 2500 | 2400 | 90 | Manual | CW/CCW |
| DC101D-20-RAS | 2" | 39 | 147 | 2500 | 2400 | 75 | Airshift | CW/CCW |
| DC101D-25-RAS | 2 1/2" | 48 | 180.5 | 2500 | 2400 | 90 | Airshift | CW/CCW |
| Dynaco |
Parker/ Commercial |
Permco Model # |
Metaris Model # |
Muncie Part # |
10 Digit # |
|---|---|---|---|---|---|
| DC101D-20-RMS | C101D-20 | DM512-20-ZR-M-T-250 | MH101C-20-RMS | E2XL23-1RPRB | 314-9310-205 |
| DC101D-25-RMS | C101D-25 | DM640-25-ZR-M-T-250 | MH101C-25-RMS | E2XL27-1RPRB |
314-9310-206 314-9310-226 |
| DC101D-20-RAS | C101D-20-AS | DM512-20-ZR-M-AS-250 | MH101C-20-RAS | E2XA23-2BPRB | |
| DC101D-25-RAS | C101D-25-AS | DM640-25-ZR-M-AS-250 | MH101C-25-RAS | E2XA27-2BPRB |
