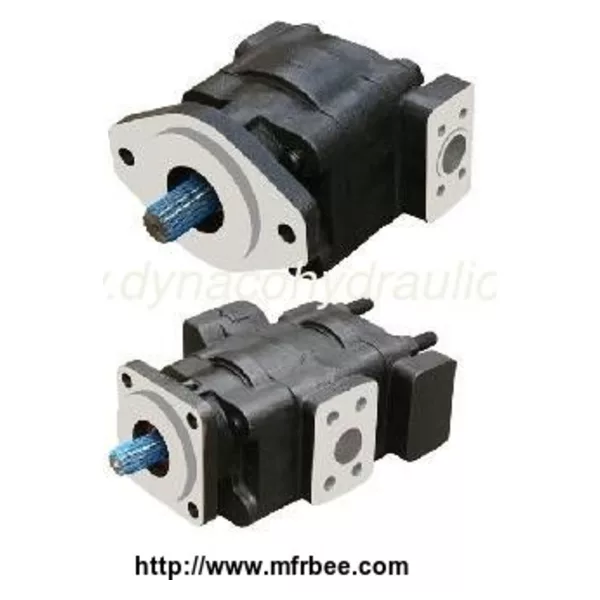

Parker Commercial P315 P330 P350 P365 gear pump
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- CHINA
- Minimum Order
- 1
- Packaging
- FOR EXPORT
- Delivery
- 15 Days
Specifications
DYNACO P315/P330/P350/P365 series gear pump and motor can be 100% interchanged with Parker Commercial type P315/P330/P350/P51/P365 gear pump and motor. The Gear Pumps have the durability and reliability of this time tested design. Dynaco has combined this technology with cutting EDGE, state-of-the-art manufacturing processes to make the Gear products the highest quality and most dependable in the market place. We can also supply other Commercial type replacement gear pump. Please view below attachment DYNACO P315/P330/P35-/P365 Bushing Pump.pdf technical product catalog
| 315 Pump Performance Data: | ||||||||||||||
| Gear Width | Output | Reted | Maximun | Speed | Input | |||||||||
| (in) | (ml/r) | Pressure | Pressure | (RPM) | Power | |||||||||
| (Psi) | (Psi) | Min | Max | (KW) | ||||||||||
| 1/2" | 10 | 3600 | 4000 | 600 | 3000 | 14.7 | ||||||||
| 3/4" | 16 | 23.5 | ||||||||||||
| 1" | 20 | 29.4 | ||||||||||||
| 1 1/4" | 25 | 36.8 | ||||||||||||
| 1 1/2" | 30 | 3600 | 3600 | 37.1 | ||||||||||
| 1 3/4" | 35 | 2600 | 3000 | 39.2 | ||||||||||
| 2" | 40 | 42.4 | ||||||||||||
| Gear Width | Output Flow | |||||||||||||
| (in) | 900RPM | 1200RPM | 1500RPM | 1800RPM | 2100RPM | 2400RPM | 3000RPM | |||||||
| GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | GPM | LPM | |
| 1/2" | 2 | 8 | 2.8 | 11 | 3.6 | 14 | 4.4 | 17 | 5.2 | 20 | 6 | 23 | 7.7 | 29 |
| 3/4" | 3.2 | 12 | 4.4 | 17 | 5.6 | 21 | 6.8 | 26 | 8.1 | 30 | 9.3 | 35 | 11.7 | 44 |
| 1" | 4.4 | 17 | 6 | 23 | 7.7 | 29 | 9.3 | 35 | 10.9 | 41 | 12.5 | 47 | 15.7 | 59 |
| 1 1/4" | 5.5 | 21 | 7.6 | 29 | 9.6 | 36 | 11.6 | 44 | 13.6 | 51 | 15.6 | 59 | 19.6 | 74 |
| 1 1/2" | 6.7 | 26 | 9.2 | 35 | 11.6 | 44 | 14 | 53 | 16.4 | 62 | 18.8 | 71 | 23.7 | 90 |
| 1 3/4" | 7.9 | 30 | 10.7 | 40 | 13.5 | 51 | 16.3 | 62 | 19.1 | 72 | 21.9 | 83 | 27.6 | 104 |
| 2" | 9 | 34 | 12.2 | 46 | 15.4 | 58 | 18.6 | 70 | 21.8 | 83 | 25.1 | 95 | 31.5 | 119 |
| 315 Motor Performance Data: | ||||||||||||||
| M315 | 1" Gear Width | 1 1/4" Gear Width | 1 1/2" Gear Width | 1 3/4" Gear Width | 2" Gear Width | |||||||||
| Speed | Output | Output | Output | Output | Output | |||||||||
| (RPM) | (3500Psi) | (3500Psi) | (3250Psi) | (2900Psi) | (2500Psi) | |||||||||
| Torque | Power | Torque | Power | Torque | Power | Torque | Power | Torque | Power | |||||
| 900 | 665 | 7.1 | 830 | 8.3 | 925 | 9.6 | 965 | 10.9 | 950 | 12.2 | ||||
| in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | |||||
| 75.1 | 27 | 93.8 | 32 | 104.5 | 37 | 109 | 41 | 107.3 | 46 | |||||
| Nm | KW | Nm | KW | Nm | KW | Nm | KW | Nm | KW | |||||
| 1200 | 665 | 8.8 | 830 | 10.5 | 925 | 12.2 | 965 | 13.8 | 950 | 15.5 | ||||
| in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | |||||
| 75.1 | 33 | 93.8 | 40 | 104.5 | 46 | 109 | 52 | 107.3 | 59 | |||||
| Nm | KW | Nm | KW | Nm | KW | Nm | KW | Nm | KW | |||||
| 1500 | 660 | 10.6 | 825 | 12.6 | 920 | 14.7 | 955 | 16.7 | 945 | 18.8 | ||||
| in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | |||||
| 74.6 | 40 | 93.2 | 48 | 103.9 | 56 | 107.9 | 63 | 106.8 | 71 | |||||
| Nm | KW | Nm | KW | Nm | KW | Nm | KW | Nm | KW | |||||
| 1800 | 665 | 12.3 | 820 | 14.7 | 915 | 17.2 | 950 | 19.6 | 940 | 22.1 | ||||
| in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | |||||
| 74 | 46 | 92.6 | 56 | 103.4 | 65 | 107.3 | 74 | 106.2 | 84 | |||||
| Nm | KW | Nm | KW | Nm | KW | Nm | KW | Nm | KW | |||||
| 2100 | 665 | 14 | 820 | 16.8 | 915 | 19.7 | 950 | 22.5 | 940 | 25.4 | ||||
| in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | |||||
| 74 | 53 | 92.6 | 64 | 103.4 | 75 | 107.3 | 85 | 106.2 | 96 | |||||
| Nm | KW | Nm | KW | Nm | KW | Nm | KW | Nm | KW | |||||
| 2400 | 640 | 15.7 | 800 | 18.9 | 895 | 22.2 | 930 | 25.4 | 920 | 28.8 | ||||
| in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | |||||
| 72.3 | 59 | 90.4 | 72 | 101.1 | 84 | 105.1 | 96 | 103.9 | 109 | |||||
| Nm | KW | Nm | KW | Nm | KW | Nm | KW | Nm | KW | |||||
| 3000 | 640 | 19 | 800 | 23 | 890 | 27.2 | 915 | 31.2 | 915 | 35.3 | ||||
| in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | in-lbs | HP | |||||
| 72.3 | 72 | 90.4 | 87 | 100.6 | 103 | 103.4 | 118 | 103.4 | 134 | |||||
| Nm | KW | Nm | KW | Nm | KW | Nm | KW | Nm | KW |
